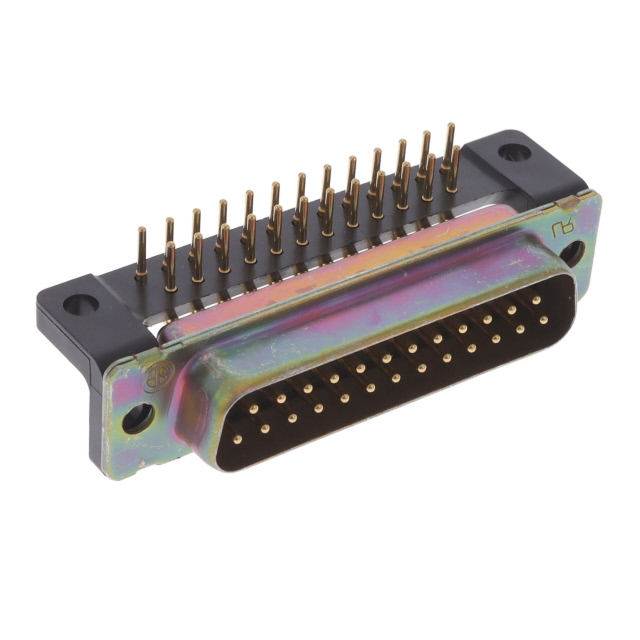

CONN D-SUB PLUG 25POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1218441-3
ActiveTE Connectivity Aerospace, Defense and Marine
CONN D-SUB PLUG 25POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1218441-3 | 1218441 Series |
|---|---|---|
| Backset Spacing | 8.08 mm | 8.08 mm |
| Backset Spacing | 0.318 " | 0.318 " |
| Color | Black | Black |
| Connector Style | D-Sub | D-Sub |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 10 Áin | 10 Áin |
| Contact Finish Thickness | 0.25 Ám | 0.25 Ám |
| Contact Material | Brass | Brass |
| Contact Type | Signal | Signal |
| Current Rating (Amps) | 5 A | 5 A |
| Flange Feature | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | - | 9 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shell Material, Finish [custom] | Steel | Steel |
| Shell Material, Finish [custom] | Cadmium Plated | Cadmium Plated |
| Shell Size, Connector Layout [custom] | DB, B | DB, B, DE, E |
| Shell Size, Connector Layout [custom] | 3 | 1 - 3 |
| Termination | Solder | Solder |
1218441 Series
CONN D-SUB PLUG 25POS R/A SLDR
| Part | Mounting Type | Backset Spacing | Backset Spacing | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Number of Rows | Contact Finish | Contact Type | Connector Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Material | Shell Material, Finish [custom] | Shell Material, Finish [custom] | Termination | Connector Style | Operating Temperature [Min] | Operating Temperature [Max] | Color | Flange Feature | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine 1218441-3 | Through Hole, Right Angle | 8.08 mm | 0.318 " | 10 Áin | 0.25 Ám | 5 A | 2 | Gold | Signal | Male Pins, Plug | B, DB | 3 | Brass | Steel | Cadmium Plated | Solder | D-Sub | -55 °C | 125 °C | Black | Housing/Shell (Unthreaded) | |
