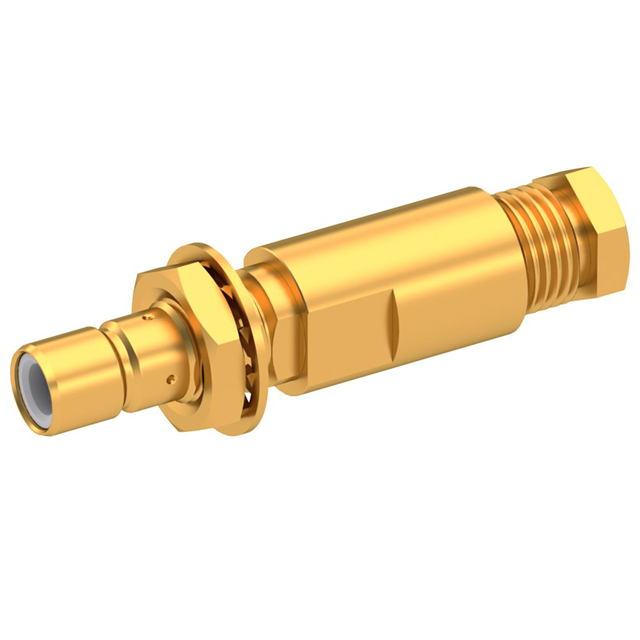

Specification	R114305000

Body Finish	Gold
Body Material	Brass
Cable Group	188, 187, RG-179, 316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Jack, Male Pin
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max	4 GHz
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Clamp
Voltage Rating	335 V

R11430 Series

Part	Contact Termination	Housing Color	Center Contact Material	Mounting Feature	Shield Termination	Mounting Type	Number of Ports	Fastening Type	Impedance	Connector Type	Frequency - Max	Cable Group	Connector Style	Body Material	Mating Cycles	Body Finish	Center Contact Plating	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Dielectric Material
Radiall USA, Inc. R114305000W	Solder	Gold	Brass	Bulkhead Front Side Nut	Clamp	Panel Mount	1	Snap-On	50 Ohm	Jack Male Pin	4 GHz	187 188 316 RG-179	SMB	Brass	500 cycles	Gold	Gold	-65 °C	165 °C	335 V	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R114303000	Solder	Gold	Brass	Bulkhead Front Side Nut	Clamp	Panel Mount	1	Snap-On	50 Ohm	Jack Male Pin	4 GHz	196 RG-178	SMB	Brass	500 cycles	Gold	Gold	-55 °C	100 °C	250 V	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R114305000	Solder	Gold	Brass	Bulkhead Front Side Nut	Clamp	Panel Mount	1	Snap-On	50 Ohm	Jack Male Pin	4 GHz	187 188 316 RG-179	SMB	Brass	500 cycles	Gold	Gold	-65 °C	165 °C	335 V	Polytetrafluoroethylene (PTFE)
