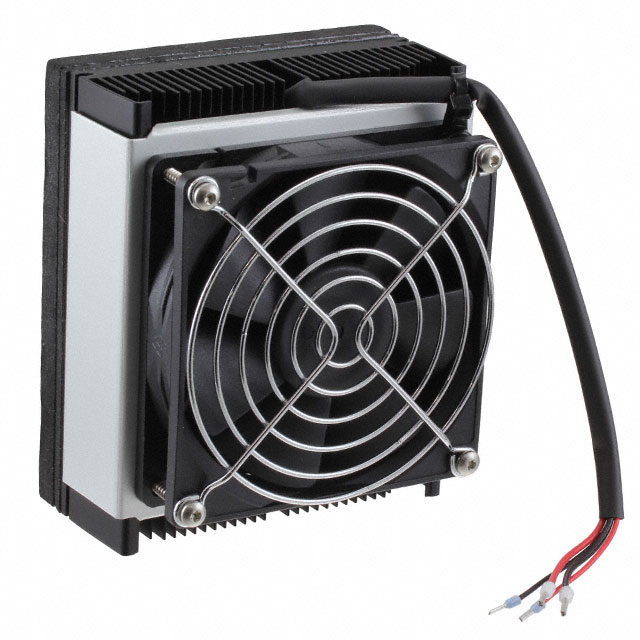

DA-044-12-02-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECTRIC ASSEMBLIES 42W 3.8A 46DEGC
DA-044-12-02-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECTRIC ASSEMBLIES 42W 3.8A 46DEGC
Description
General part information
DA Series
Direct to Air Thermoelectric Assembly 42 W
Technical Specifications
Parameters and characteristics for this part
| Specification | DA-044-12-02-00-00 |
|---|---|
| Current | 3.8 A |
| Dimensions - Overall Height | 72 mm |
| Dimensions - Overall Length | 120 mm |
| Dimensions - Overall Width | 100 mm |
| Fan Location | Warm Side |
| Heat Transfer Type | Direct to Air |
| Operating Temperature (Max) | 46 °C |
| Operating Temperature (Min) | -10 °C |
| Power - Cooling | 42 W |
| Power - Input | 46 W |
| Voltage | 12 VDC |
| Weight | 1.3 lbs |
