1092-0-05-21-00-00-01-0
ActiveMill-Max Manufacturing Corp.

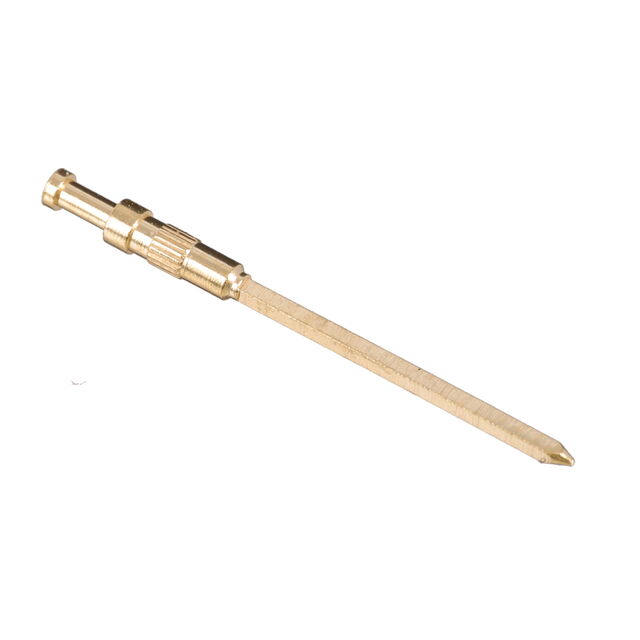

TERM TURRET PIN L=3.43MM GOLD
Deep-Dive with AI
Search across all available documentation for this part.
1092-0-05-21-00-00-01-0
ActiveMill-Max Manufacturing Corp.
TERM TURRET PIN L=3.43MM GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1092-0-05-21-00-00-01-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Diameter - Turret Head [diameter] | 0.053 in |
| Diameter - Turret Head [diameter] | 1.35 mm |
| Flange Diameter [diameter] | 1.6 mm |
| Flange Diameter [diameter] | 0.063 in |
| Insulation | Non-Insulated |
| Length - Above Board | 3.43 mm |
| Length - Above Board | 0.135 in |
| Length - Below Flange [x] | 16.51 mm |
| Length - Below Flange [x] | 0.65 in |
| Length - Overall [x] | 19.94 mm |
| Length - Overall [x] | 0.785 in |
| Mounting Hole Diameter [diameter] | 1.42 mm |
| Mounting Hole Diameter [diameter] | 0.056 in |
| Mounting Type | Through Hole |
| Number of Turrets | Single |
| Terminal Type | Double End, Pin |
| Termination | Wire Wrap, Knurled, Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.50 | |
| 10 | $ 1.31 | |||
| 25 | $ 1.25 | |||
| 50 | $ 1.22 | |||
| 100 | $ 1.17 | |||
| 250 | $ 1.06 | |||
| 500 | $ 0.97 | |||
| 1000 | $ 0.83 | |||
| 3000 | $ 0.78 | |||
Description
General part information
1092-0 Series
Terminal Turret Connector Double End, Pin 0.135" (3.43mm) Gold
Documents
Technical documentation and resources
No documents available
