BD-05BMFA-QL8MP0

Active

Amphenol LTW

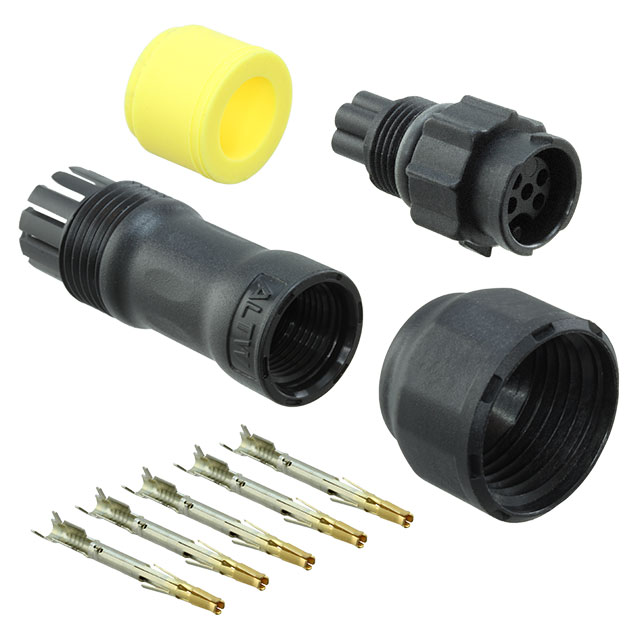

CONN RCPT FMALE 5POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BD-05BMFA-QL8MP0

Active

Amphenol LTW

CONN RCPT FMALE 5POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BD-05BMFA-QL8MP0

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	5
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Termination	Crimp

BD-05BMFA Series

Part	Housing Color	Fastening Type	Type	Ingress Protection	Primary Material	Connector Type	Mounting Type	Contact Shape	Features	Insert Material	Note	Shell Size - Insert	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Contact Type	Current Rating (Amps)	Material Flammability Rating	Contact Finish - Mating	Number of Positions	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Voltage Rating	Color	Contact Material	Shell Material	Termination	Backshell Material, Plating
Amphenol LTW BD-05BMFA-QL8AN0	Black	Push-Pull	For Female Sockets	IP68 - Dust Tight Waterproof	Plastic	Plug Housing	Free Hanging (In-Line)	Circular	Backshell	Thermoplastic	Contacts Not Included	B	Unshielded	-40 °C	105 ░C	Keyed	Crimp
Amphenol LTW BD-05BMFA-QL8SP0		Push-Pull		IP68 - Dust Tight Waterproof	Plastic	Female Sockets Plug	Free Hanging (In-Line)		Backshell	Polyamide (PA) Nylon Glass Filled		B	Unshielded	-40 °C	105 ░C	Keyed		5 A	UL94 V-0	Gold	5	0.236 in	6 mm	5 mm	0.197 in	300 VAC	Black	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Crimp
Amphenol LTW BD-05BMFA-QL8MP0		Push-Pull		IP68 - Dust Tight Waterproof	Plastic	Receptacle Female Sockets	Free Hanging (In-Line)		Backshell Strain Relief	Polyamide (PA) Nylon Glass Filled		B	Unshielded	-20 C	80 C	Keyed		5 A	UL94 V-0	Gold	5						Black	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Crimp
Amphenol LTW BD-05BMFA-LL7001		Bayonet Lock		IP67 - Dust Tight Waterproof	Plastic	Receptacle Female Sockets	Free Hanging (In-Line)		Backshell Coupling Nut	Polyamide (PA) Nylon Glass Filled		B	Unshielded	-40 °C	105 ░C	Keyed		5 A		Gold							Black	Copper Alloy	Glass Filled Nylon Polyamide (PA)		Glass Filled Nylon Polyamide (PA)
Amphenol LTW BD-05BMFA-QL8LP0		Push-Pull		IP68 - Dust Tight Waterproof	Plastic	Female Sockets Plug	Free Hanging (In-Line)		Backshell	Polyamide (PA) Nylon Glass Filled		B	Unshielded	-40 °C	105 ░C	Keyed		5 A	UL94 V-0	Gold	5	0.394 in	10 mm	8 mm	0.315 in	300 VAC	Black	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Crimp
Amphenol LTW BD-05BMFA-LL6001		Bayonet Lock		IP66	Plastic	Receptacle Female Sockets	Free Hanging (In-Line)		Backshell Coupling Nut	Polyamide (PA) Nylon Glass Filled		B	Unshielded	-40 °C	105 ░C	Keyed		5 A		Gold							Black	Copper Alloy	Glass Filled Nylon Polyamide (PA)		Glass Filled Nylon Polyamide (PA)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.20
		10	$ 4.70
		25	$ 4.44
		50	$ 4.33
		100	$ 4.11
		250	$ 3.81

Description

General part information

BD-05BMFA Series

5 (Data) Position Circular Connector Receptacle, Female Sockets Crimp
