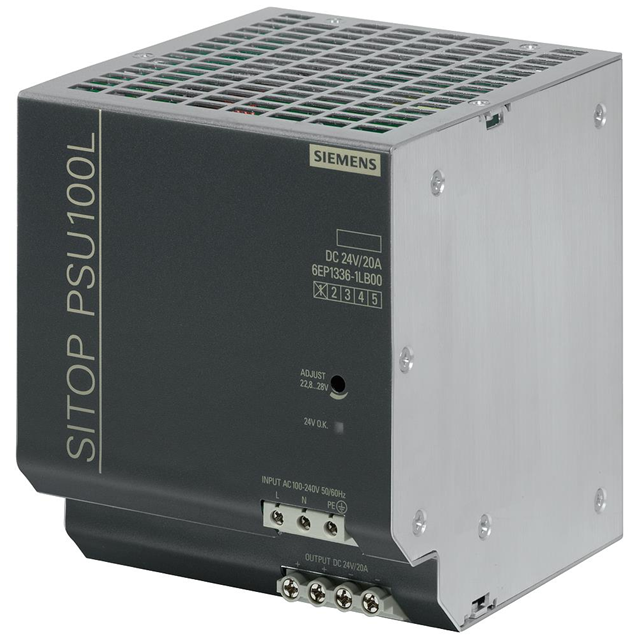

6EP13361LB00

Active

Siemens

AC/DC DIN RAIL SUPPLY 24V 480W

Search across all available documentation for this part.

Active

Siemens

AC/DC DIN RAIL SUPPLY 24V 480W

Technical Specifications

Parameters and characteristics for this part

Specification	6EP13361LB00

AC Voltage - Input [Max]	264 VAC, 240 VAC
AC Voltage - Input [Min]	85 VAC, 100 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	CB, CSA, CE, UL, cULus, cUL
Current - Output (Max) [Max]	20 A
DC Voltage - Input (Max) [Max]	370 V
DC Voltage - Input (Min) [Min]	88 V
Efficiency	92 %
Features	Adjustable Output, Universal Input, IP20
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	480 W
Size / Dimension [x]	125 mm
Size / Dimension [x]	4.92 in
Size / Dimension [y]	4.33 "
Size / Dimension [y]	110 mm
Size / Dimension [z]	4.92 in
Size / Dimension [z]	125 mm
Standard Number	60950-1, UL 508
Voltage - Output 1	24 V

Part	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Features	Power (Watts)	Approval Agency	Standard Number	DC Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	DC Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Applications	Input Type
Siemens 6EP13361LB00	24 V	4.33 "	4.92 in	125 mm	110 mm	4.92 in	125 mm	1	240 VAC 264 VAC	85 VAC 100 VAC	Adjustable Output IP20 Universal Input	480 W	CB CE CSA cUL cULus UL	60950-1 UL 508	370 V	-25 °C	70 °C	92 %	88 V	20 A	Hazardous Locations Industrial ITE (Commercial)	AC or DC
