AD-NJBNCP-1

Active

Amphenol RF

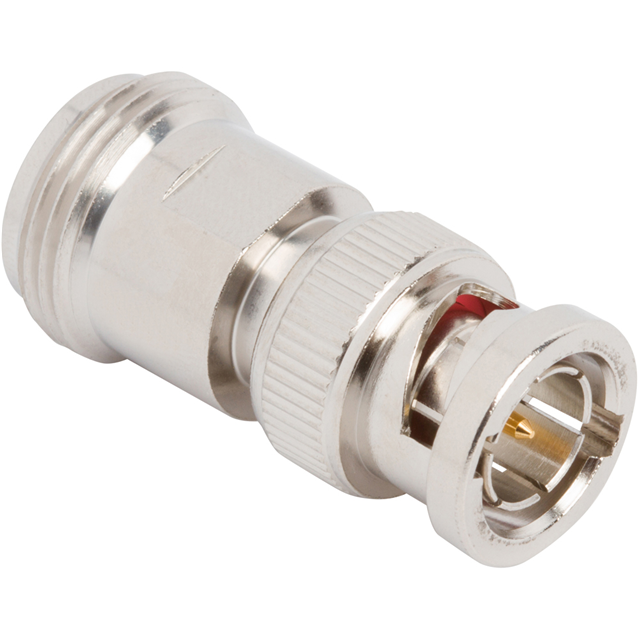

BNC PLUG TO N-TYPE JACK ADAPTER

Search across all available documentation for this part.

Active

Amphenol RF

BNC PLUG TO N-TYPE JACK ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	AD-NJBNCP-1

Adapter Series	BNC to N
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	BNC Plug, Male Pin
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	12 GHz
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Style	Conversion Type	Mating Cycles	Dielectric Material	Body Finish	Adapter Type	Center Contact Plating	Body Material	Adapter Series	Frequency - Max [Max]	Center Contact Material	Convert From (Adapter End)	Fastening Type	Impedance	Mounting Type	Convert To (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol RF AD-NJBNCP-1	Straight	Between Series	500	Polytetrafluoroethylene (PTFE)	Nickel	Plug to Jack	Gold	Brass	BNC to N	12 GHz	Phosphor Bronze	BNC Plug Male Pin	Bayonet Lock Threaded	75 Ohms	Free Hanging (In-Line)	Female Socket N Jack	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Plug, Male Pin To N Jack, Female Socket 75 Ohms
