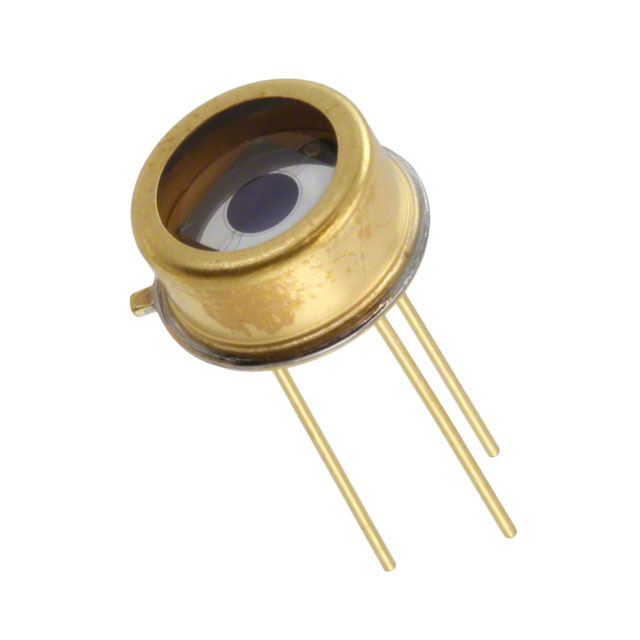

UVG5S

Active

Opto Diode Corp

SENSOR PHOTODIODE UV 5MM2

Search across all available documentation for this part.

Active

Opto Diode Corp

SENSOR PHOTODIODE UV 5MM2

Technical Specifications

Parameters and characteristics for this part

SENSOR PHOTODIODE UV 5MM2

Part	Response Time	Active Area	Spectral Range [Min] [custom]	Spectral Range [Max] [custom]	Viewing Angle	Responsivity @ nm	Current - Dark (Typ)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
Opto Diode Corp UVG5S	1 µs	5 mm²	250 nm	1100 nm	45 °	0.115 A/W	1 nA	Through Hole	-20 C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Photodiode 1µs 45°
