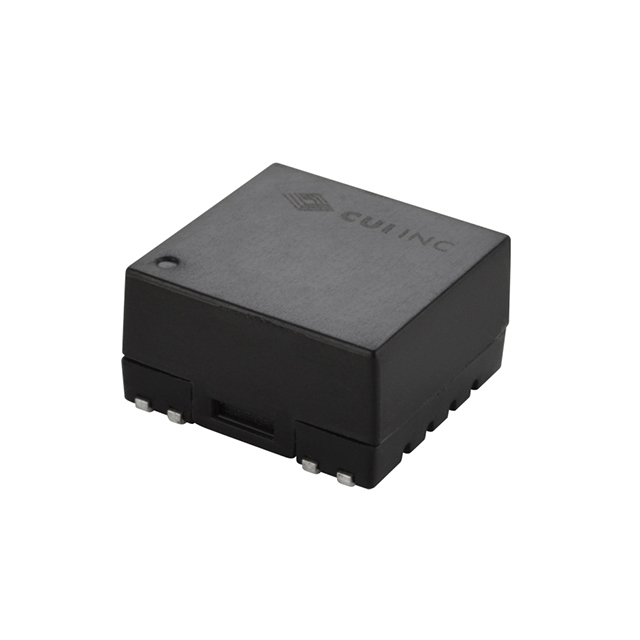

PQME3-D24-S9-M-TR

CUI Inc.

DC DC CONVERTER 9V 3W

Deep-Dive with AI

Search across all available documentation for this part.

PQME3-D24-S9-M-TR

CUI Inc.

DC DC CONVERTER 9V 3W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PQME3-D24-S9-M-TR

Applications	ITE (Commercial)
Approval Agency	UL
Current - Output (Max) [Max]	333 mA
Efficiency	80 %
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-SMD Module, 7 Leads
Power (Watts)	3 W
Size / Dimension [x]	0.76 "
Size / Dimension [x]	19.2 mm
Size / Dimension [y]	0.71 in
Size / Dimension [y]	18.1 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Standard Number	60950-1
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	9 V

PQME3 Series

Part	Standard Number	Voltage - Input (Max) [Max]	Number of Outputs	Power (Watts)	Voltage - Output 1	Mounting Type	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Applications	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Approval Agency	Package / Case	Efficiency
CUI Inc. PQME3-D24-S24-M	55024 55032 Class A 60950-1	36 V	1	3 W	24 V	Surface Mount	9 V	125 mA	ITE (Commercial)	Isolated Module	0.76 "	0.71 in	0.4 "	10.2 mm	18.1 mm	19.2 mm	85 °C	-40 °C	1.5 kV	EN UL	14-SMD Module 7 Leads
CUI Inc. PQME3-D24-S9-M	60950-1	36 V	1	3 W	9 V	Surface Mount	9 V	333 mA	ITE (Commercial)	Isolated Module	0.76 "	0.71 in	0.4 "	10.2 mm	18.1 mm	19.2 mm	85 °C	-40 °C	1.5 kV	UL	14-SMD Module 7 Leads	80 %
CUI Inc. PQME3-D48-S3-M		75 V	1	2.4 W	3.3 V	Surface Mount	18 V	728 mA	ITE (Commercial)	Isolated Module	0.76 "	0.71 in	0.4 "	10.2 mm	18.1 mm	19.2 mm	85 °C	-40 °C	1.5 kV		14-SMD Module 7 Leads	75 %
CUI Inc. PQME3-D24-S9-M-TR	60950-1	36 V	1	3 W	9 V	Surface Mount	9 V	333 mA	ITE (Commercial)	Isolated Module	0.76 "	0.71 in	0.4 "	10.2 mm	18.1 mm	19.2 mm	85 °C	-40 °C	1.5 kV	UL	14-SMD Module 7 Leads	80 %
CUI Inc. PQME3-D24-S5-M-TR	55024 55032 Class A 60950-1	36 V	1	3 W	5 V	Surface Mount	9 V	600 mA	ITE (Commercial)	Isolated Module	0.76 "	0.71 in	0.4 "	10.2 mm	18.1 mm	19.2 mm	85 °C	-40 °C	1.5 kV	EN UL	14-SMD Module 7 Leads	80 %
CUI Inc. PQME3-D24-S24-M-TR	55024 55032 Class A 60950-1	36 V	1	3 W	24 V	Surface Mount	9 V	125 mA	ITE (Commercial)	Isolated Module	0.76 "	0.71 in	0.4 "	10.2 mm	18.1 mm	19.2 mm	85 °C	-40 °C	1.5 kV	EN UL	14-SMD Module 7 Leads
CUI Inc. PQME3-D24-S3-M		36 V	1	2.4 W	3.3 V	Surface Mount	9 V	728 mA	ITE (Commercial)	Isolated Module	0.76 "	0.71 in	0.4 "	10.2 mm	18.1 mm	19.2 mm	85 °C	-40 °C	1.5 kV		14-SMD Module 7 Leads	75 %
CUI Inc. PQME3-D24-S12-M-TR	55024 55032 Class A 60950-1	36 V	1	3 W	12 V	Surface Mount	9 V	250 mA	ITE (Commercial)	Isolated Module	0.76 "	0.71 in	0.4 "	10.2 mm	18.1 mm	19.2 mm	85 °C	-40 °C	1.5 kV	EN UL	14-SMD Module 7 Leads
CUI Inc. PQME3-D24-S5-M	55024 55032 Class A 60950-1	36 V	1	3 W	5 V	Surface Mount	9 V	600 mA	ITE (Commercial)	Isolated Module	0.76 "	0.71 in	0.4 "	10.2 mm	18.1 mm	19.2 mm	85 °C	-40 °C	1.5 kV	EN UL	14-SMD Module 7 Leads	80 %
CUI Inc. PQME3-D48-S5-M		75 V	1	3 W	5 V	Surface Mount	18 V	600 mA	ITE (Commercial)	Isolated Module	0.76 "	0.71 in	0.4 "	10.2 mm	18.1 mm	19.2 mm	85 °C	-40 °C	1.5 kV		14-SMD Module 7 Leads	79 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 13.67
		5	$ 12.89
		10	$ 12.56
		25	$ 12.15
		50	$ 11.84
		100	$ 11.55
	Digi-Reel®	1	$ 13.67
		5	$ 12.89
		10	$ 12.56
		25	$ 12.15
		50	$ 11.84
		100	$ 11.55
	Tape & Reel (TR)	200	$ 10.87
		400	$ 10.68
		600	$ 10.49

Description

General part information

PQME3 Series

Isolated Module DC DC Converter 1 Output 9V 333mA 9V - 36V Input
