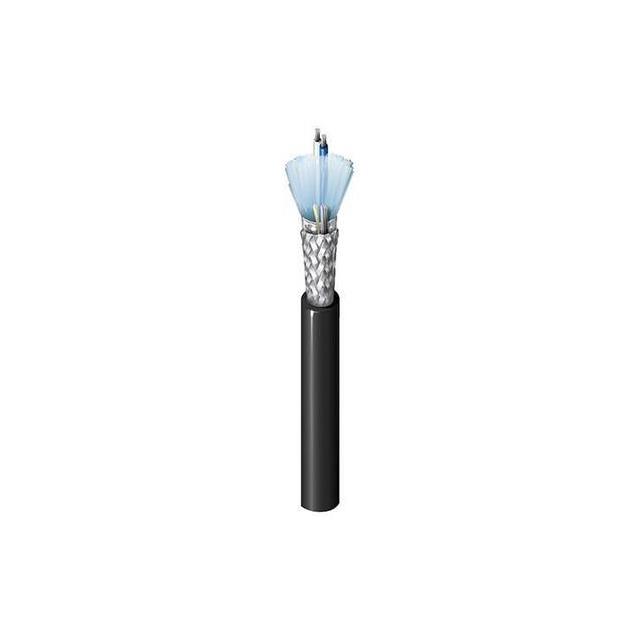

3108T 0105000

Active

Belden Inc.

MULTI-PAIR 6COND 22AWG BLK 5000'

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 6COND 22AWG BLK 5000'

Technical Specifications

Parameters and characteristics for this part

Specification	3108T 0105000

Cable Type	Multi-Pair
Conductor Insulation	Foam High Density Polyethylene (FHDPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter	13.21 mm
Jacket (Insulation) Diameter [diameter]	0.52 in
Jacket Color	Black
Number of Conductors	6
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Wire Gauge	22 AWG

Part	Shield Coverage	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Conductor Material	Shield Type	Number of Conductors	Conductor Insulation	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter	Shield Material
Belden Inc. 3108T 0105000	65 % 100 %	Multi-Pair	7	30 AWG	Black	Copper Tinned	Braid Foil	6	Foam High Density Polyethylene (FHDPE)	22 AWG	0.52 in	13.21 mm	Aluminum Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6 (3 Pair) Conductor Multi-Pair Cable Black 22 AWG Foil, Braid 5000' (1524.0m)
