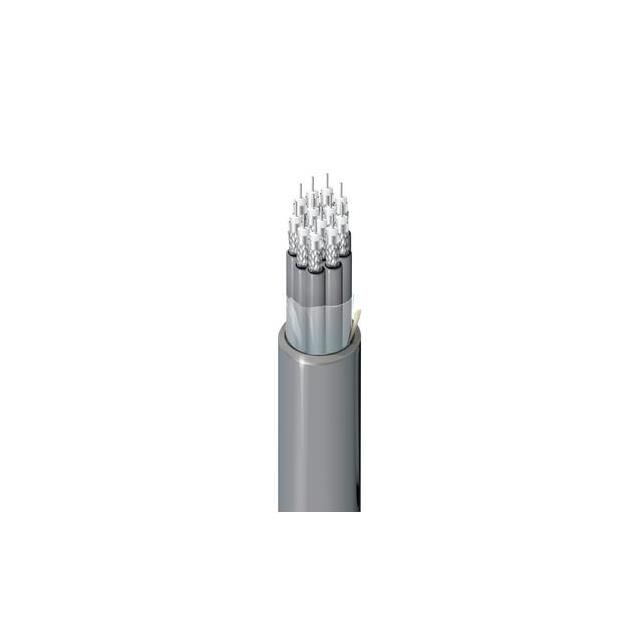

734C12 0083000

Active

Belden Inc.

12#20 LDPE/FHDLDPESHFRPVCFRPVC

Search across all available documentation for this part.

Active

Belden Inc.

12#20 LDPE/FHDLDPESHFRPVCFRPVC

Technical Specifications

Parameters and characteristics for this part

Specification	734C12 0083000

Cable Group	RG-59
Cable Type	Multi-Conductor - Riser
Conductor Material	Copper, Silver Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	3.75 mm
Dielectric Diameter [diameter]	0.148 in
Jacket (Insulation) Diameter [diameter]	27.18 mm
Jacket (Insulation) Diameter [diameter]	1.07 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	3000 '
Length [x]	914.4 m
Shield Coverage	100 %, 85 %
Shield Material	Aluminum, Polyester, Copper, Tinned
Shield Type	Foil, Braid
Usage	Datacom
VoP, Velocity of Propagation	80
Wire Gauge	20 AWG

Part	VoP, Velocity of Propagation	Jacket (Insulation) Material	Conductor Strand	Shield Material	Wire Gauge	Shield Coverage	Cable Group	Conductor Material	Usage	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Type	Jacket Color	Cable Type
Belden Inc. 734C12 0083000	80	Poly-Vinyl Chloride (PVC)	Solid	Aluminum Polyester Copper Tinned	20 AWG	85 % 100 %	RG-59	Copper Silver Coated	Datacom	3000 '	914.4 m	27.18 mm	1.07 in	3.75 mm	0.148 in	Braid Foil	Gray	Multi-Conductor - Riser

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	3000	$ 13.07

General part information

Multi-Conductor - Riser Cable 20 AWG RG-59 3000.0' (914.40m)
