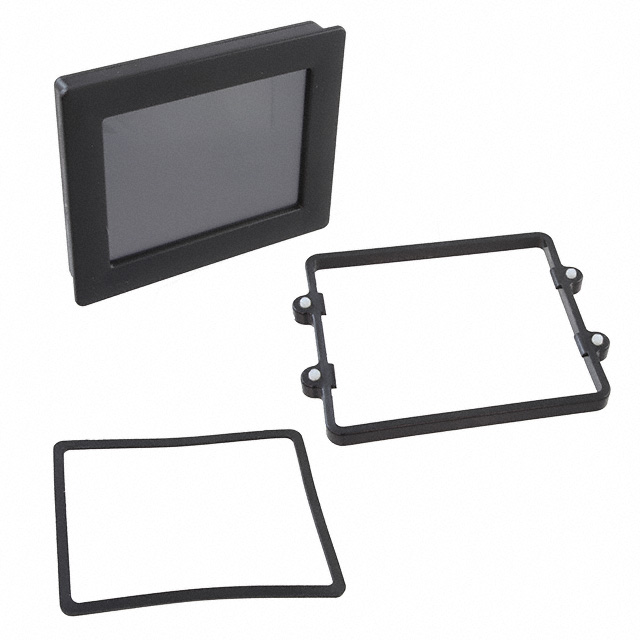

SGD 35-M

Active

Lascar Electronics

3.5" PROG PNL METER

Search across all available documentation for this part.

Active

Lascar Electronics

3.5" PROG PNL METER

Technical Specifications

Parameters and characteristics commom to parts in this series

3.5" PROG 4-20MA PROCESS METER

Part	Type	Termination Style	Measuring Type	Display Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Measuring Range [Min]	Measuring Range [Max]
Lascar Electronics SGD 35-M-420	Process Meter	Screw Terminal	Process	TFT - Color (Touch)	92 mm	75 mm	40 °C	0 °C	30 VDC	4 V
Lascar Electronics SGD 35-M	Voltmeter	Screw Terminal	Voltage	TFT - Color (Touch)	92 mm	75 mm	40 °C	0 °C	30 VDC	4 V	0 V	40 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 161.49

General part information

Voltmeter TFT - Color (Touch) Display Panel Mount
