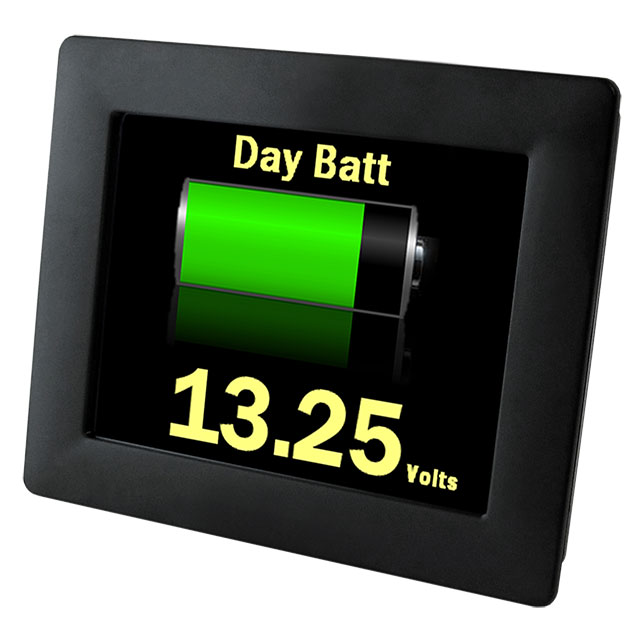

SGD 35-M-420

Active

Lascar Electronics

3.5" PROG 4-20MA PROCESS METER

Search across all available documentation for this part.

Active

Lascar Electronics

3.5" PROG 4-20MA PROCESS METER

Technical Specifications

Parameters and characteristics commom to parts in this series

3.5" PROG 4-20MA PROCESS METER

Part	Type	Termination Style	Measuring Type	Display Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Measuring Range [Min]	Measuring Range [Max]
Lascar Electronics SGD 35-M-420	Process Meter	Screw Terminal	Process	TFT - Color (Touch)	92 mm	75 mm	40 °C	0 °C	30 VDC	4 V
Lascar Electronics SGD 35-M	Voltmeter	Screw Terminal	Voltage	TFT - Color (Touch)	92 mm	75 mm	40 °C	0 °C	30 VDC	4 V	0 V	40 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 196.49

General part information

Process Meter TFT - Color (Touch) Display Panel Mount
