C2404A.38.10
ActivePrysmian Group

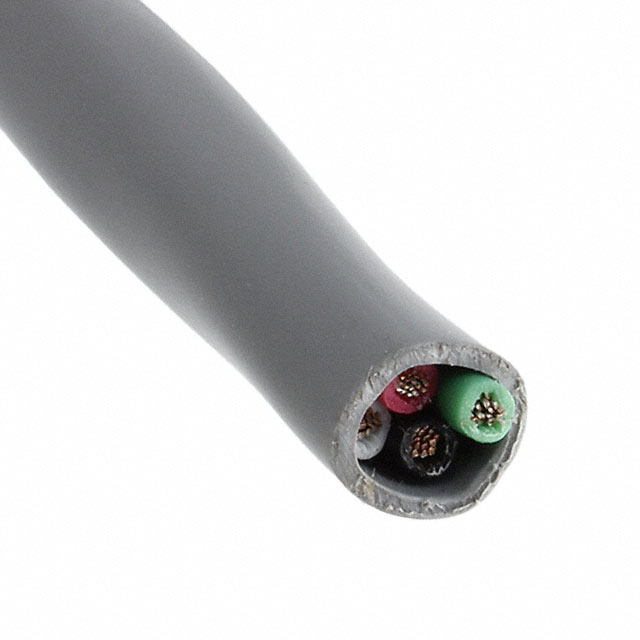

CABLE 4COND 18AWG GRAY 100'
Deep-Dive with AI
Search across all available documentation for this part.
C2404A.38.10
ActivePrysmian Group
CABLE 4COND 18AWG GRAY 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C2404A.38.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 16 |
| Conductor Strand [custom] | 30 AWG |
| Jacket (Insulation) Diameter [diameter] | 6.55 mm |
| Jacket (Insulation) Diameter [diameter] | 0.258 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length [x] | 30.5 m, 152.4 m |
| Length [x] | 100 ft, 500 ' |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Usage | Control, Communication |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 83.66 | |
| 5 | $ 68.45 | |||
| 10 | $ 53.24 | |||
| Spool | 1 | $ 401.72 | ||
| 2 | $ 382.02 | |||
| 3 | $ 370.87 | |||
| 5 | $ 357.21 | |||
| 7 | $ 348.45 | |||
| 10 | $ 339.34 | |||
| 25 | $ 316.82 | |||
Description
General part information
C2404 Series
4 Conductor Multi-Conductor Cable Gray 18 AWG 500.0' (152.4m)
Documents
Technical documentation and resources
No documents available
