MKJ1C7F6-7BB

Active

ITT Cannon, LLC

TRINITY MKJ

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

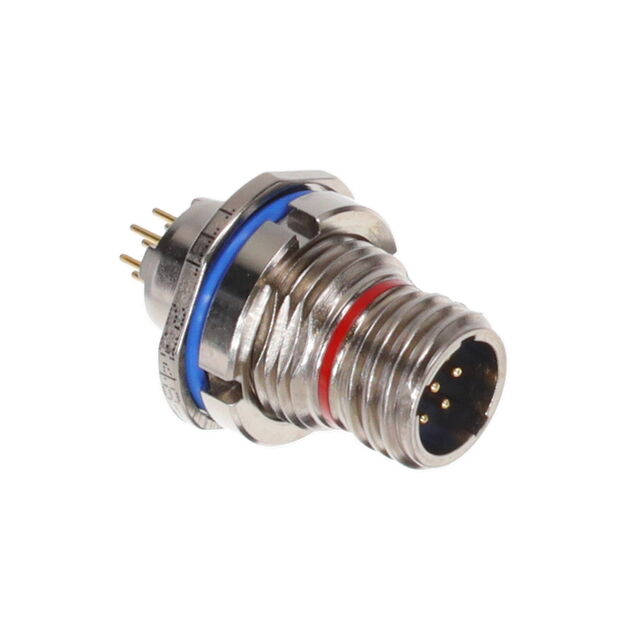

MKJ1C7F6-7BB

Active

ITT Cannon, LLC

TRINITY MKJ

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MKJ1C7F6-7BB

Applications	Communication Systems, Instrumentation, Medical, Industrial, Aerospace
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Features	Shielded
Ingress Protection	Environment Resistant
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	7
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Orientation	B
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert [Max]	7
Shell Size - Insert [Min]	6
Shielding	Shielded
Termination	Solder
Voltage Rating	500 V

MKJ1C Series

Part	Shielding	Mounting Feature	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Termination	Mounting Type	Insert Material	Contact Finish - Mating	Shell Material	Ingress Protection	Primary Material	Number of Positions	Voltage Rating	Orientation	Applications	Shell Finish	Features	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Color	Connector Type	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
ITT Cannon, LLC MKJ1C7W13-37BD
ITT Cannon, LLC MKJ1C7F9-19DA
ITT Cannon, LLC MKJ1C7W7-10DD
ITT Cannon, LLC MKJ1C7F6-7BB	Shielded	Bulkhead - Front Side Nut	7	6	Solder	Panel Mount Through Hole	Thermoplastic	Gold	Aluminum	Environment Resistant	Metal	7	500 V	B	Aerospace Communication Systems Industrial Instrumentation Medical	Electroless Nickel	Shielded	5 A	-55 °C	150 °C	Silver	Male Pins Receptacle	Copper Alloy
ITT Cannon, LLC MKJ1C7W10-26DA	Shielded	Bulkhead - Front Side Nut	26	10	Solder	Panel Mount Through Hole	Thermoplastic	Gold	Aluminum Alloy		Metal	26		N	Aerospace Communication Systems Industrial Instrumentation Medical	Olive Drab Cadmium		5 A	-65 ░C	347 °F	Olive Drab	Receptacle Female Sockets	Copper Alloy	1.27 µm	50 µin
ITT Cannon, LLC MKJ1C7F13-37BB
ITT Cannon, LLC MKJ1C2F10-26DB	Shielded	Flange	26	10	Solder	Panel Mount Through Hole	Thermoplastic	Gold	Aluminum Alloy		Metal	26		B	Aerospace Communication Systems Industrial Instrumentation Medical	Electroless Nickel		5 A	-65 ░C	347 °F	Silver	Receptacle Female Sockets	Copper Alloy	1.27 µm	50 µin
ITT Cannon, LLC MKJ1C7W6-7DB
ITT Cannon, LLC MKJ1C7W6-6BA	Shielded	Bulkhead - Front Side Nut	6	6	Solder	Panel Mount Through Hole	Thermoplastic	Gold	Aluminum Alloy		Metal	6		N	Aerospace Communication Systems Industrial Instrumentation Medical	Olive Drab Cadmium		5 A	-65 ░C	347 °F	Olive Drab	Male Pins Receptacle	Copper Alloy	1.27 µm	50 µin
ITT Cannon, LLC MKJ1C7F17-85DA	Shielded	Bulkhead - Front Side Nut	85	17	Solder	Panel Mount Through Hole	Thermoplastic	Gold	Aluminum Alloy		Metal	85		N	Aerospace Communication Systems Industrial Instrumentation Medical	Electroless Nickel		5 A	-65 ░C	347 °F	Silver	Receptacle Female Sockets	Copper Alloy	1.27 µm	50 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 105.76
Newark	Each	25	$ 127.77
		50	$ 118.46
		100	$ 116.77
		250	$ 114.23

Description

General part information

MKJ1C Series

7 Position Circular Connector Receptacle, Male Pins Solder
