BU-24APN

Active

MUELLER ELECTRIC

GROUNDING CLIP, HEAVY DUTY, STEEL, ZINC PLATED, 19 MM, 25 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet BU-60 Series Datasheet +1

BU-24APN

Active

MUELLER ELECTRIC

GROUNDING CLIP, HEAVY DUTY, STEEL, ZINC PLATED, 19 MM, 25 A

Deep-Dive with AI

DocumentsDatasheet BU-60 Series Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BU-24APN	BU-24 Series

Color	Natural	Natural
Current Rating (Amps)	25 A	25 A
Insulation	Non-Insulated	Non-Insulated
Jaw Opening	19.05 mm	19.05 mm
Jaw Opening	0.75 in	0.75 in
Length	2.84 "	2.84 "
Length	72.14 mm	72.14 mm
Plating	Zinc	Zinc
Quantity	1 Box	1 Box
Termination	Crimp or Screw	Crimp or Screw
Type	Heavy Duty	Heavy Duty

BU-24 Series

GROUNDING CLIP, HEAVY DUTY, STEEL, ZINC PLATED, 19 MM, 25 A

Part	Color	Quantity	Jaw Opening	Jaw Opening	Plating	Current Rating (Amps)	Termination	Type	Length	Length	Insulation
MUELLER ELECTRIC BU-24APN	Natural	1 Box	19.05 mm	0.75 in	Zinc	25 A	Crimp or Screw	Heavy Duty	2.84 "	72.14 mm	Non-Insulated
MUELLER ELECTRIC BU-24APS	Natural	1 Box	19.05 mm	0.75 in	Zinc	25 A	Crimp or Screw	Heavy Duty	2.84 "	72.14 mm	Non-Insulated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.90
		10	$ 1.55
		100	$ 1.47
		500	$ 1.43
		1000	$ 1.40
Newark	Each	1	$ 2.17
		100	$ 2.02
		500	$ 1.89
		1000	$ 1.74
		2500	$ 1.59

Description

General part information

BU-24 Series

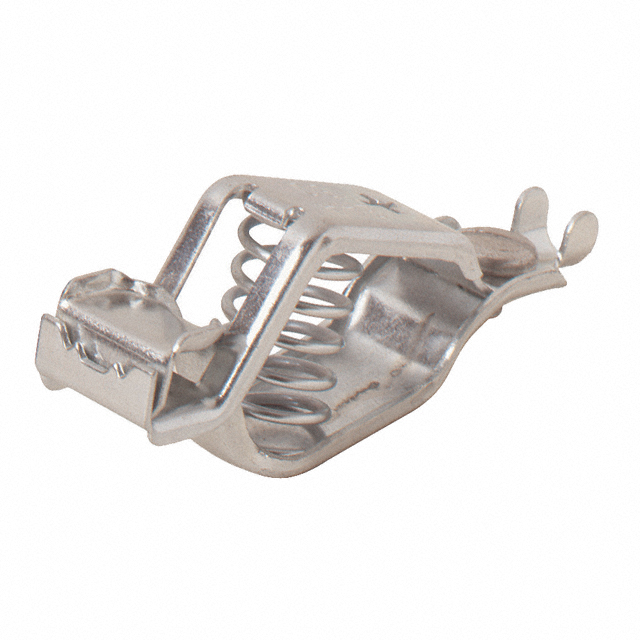

BU-24APN is a heavy duty grounding cable test clip. It is made of steel with zinc plated finish and a steel spring. This test clip can be attached by crimp or screw connection. It can be used with the BU-26 series insulator.

Documents

Technical documentation and resources

Datasheet

BU-60 Series Datasheet

Datasheet

Products,Assemblies Catalog

Datasheet
