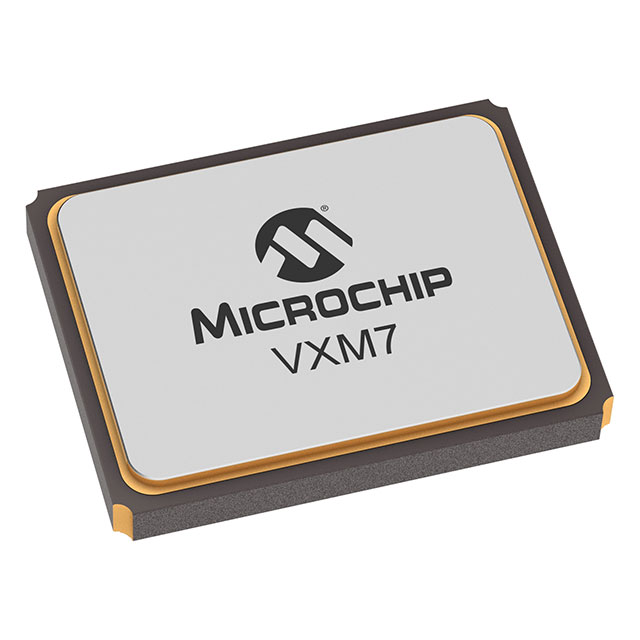

VXM7-9040-16M0000000
ActiveMicrochip Technology
OSCILLATOR CMOS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VXM7-9040-16M0000000
ActiveMicrochip Technology
OSCILLATOR CMOS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VXM7-9040-16M0000000 |
|---|---|
| ESR (Equivalent Series Resistance) | 80 Ohm |
| Frequency | 16 MHz |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) [Max] [z] | 0.8 mm |
| Height - Seated (Max) [Max] [z] | 0.031 " |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
VXM7-9040 Series
OSCILLATOR CMOS SMD
| Part | Package / Case | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | ESR (Equivalent Series Resistance) | Frequency | Frequency Tolerance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Type | Mounting Type | Operating Mode |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology VXM7-9040-16M0000000 | 4-SMD, No Lead | 0.8 mm | 0.031 " | 80 Ohm | 16 MHz | 20 ppm | 3.2 mm | 2.5 mm | 0.126 in | 0.098 in | MHz Crystal | Surface Mount | Fundamental |
Description
General part information
VXM7-9040 Series
16 MHz ±20ppm Crystal 80 Ohms 4-SMD, No Lead
