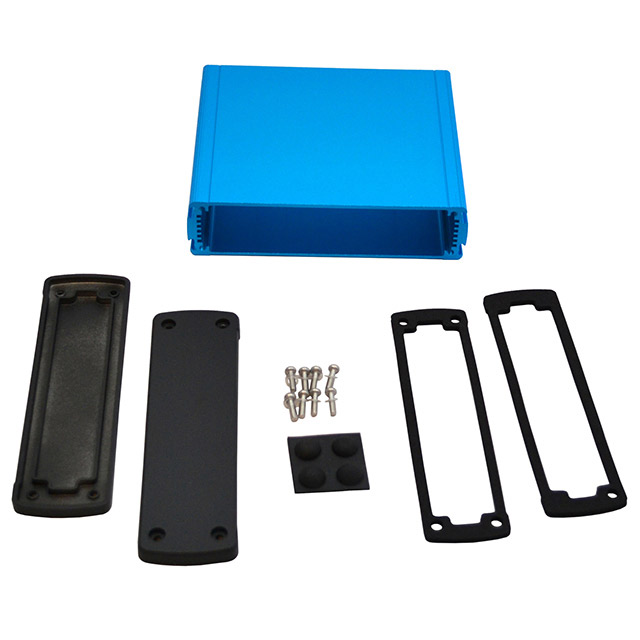

EXN-23360-BL

Active

BUD INDUSTRIES

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, 41.61 MM, 129 MM, 146.6 MM, IP66

Search across all available documentation for this part.

Active

BUD INDUSTRIES

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, 41.61 MM, 129 MM, 146.6 MM, IP66

Technical Specifications

Parameters and characteristics for this part

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, 41.61 MM, 129 MM, 146.6 MM, IP66

Part	Thickness	Thickness	Ratings	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Material	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Features	Container Type	Design	Color	Weight	Weight
BUD INDUSTRIES EXN-23360-BL	0.091 in	2.3 mm	IP65	129 mm	5.079 in	5.772 in	146.6 mm	Aluminum, Metal	29.3 in²	189 cm²	41.6 mm	1.638 in	Card Guides, Sealing Gaskets	Box	End Panel(s)	Black, Blue	0.89 lb	403.7 g

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Metal, Aluminum Black, Blue End Panel(s) 5.772" L x 5.079" W (146.60mm x 129.00mm) X 1.638" (41.60mm)
