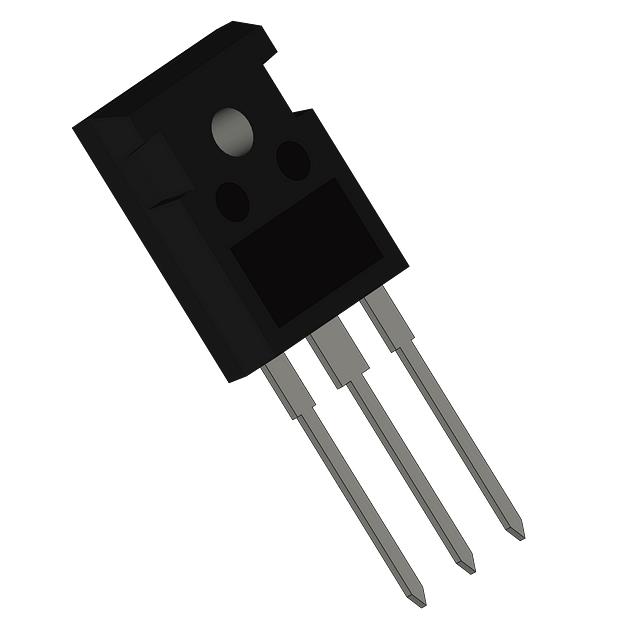

AUIRFP4568

Active

Infineon Technologies

MOSFET, N CH, 150V, 171A, TO-247AC ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Infineon Technologies

MOSFET, N CH, 150V, 171A, TO-247AC ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	AUIRFP4568

Current - Continuous Drain (Id) @ 25°C	171 A
Drain to Source Voltage (Vdss)	150 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	227 nC
Input Capacitance (Ciss) (Max) @ Vds	10470 pF
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	TO-247-3
Power Dissipation (Max) [Max]	517 W
Rds On (Max) @ Id, Vgs	5.9 mOhm
Supplier Device Package	TO-247AC
Technology	MOSFET (Metal Oxide)
Vgs (Max)	30 V
Vgs(th) (Max) @ Id	5 V

Part	Vgs (Max)	Input Capacitance (Ciss) (Max) @ Vds	Current - Continuous Drain (Id) @ 25°C	Drive Voltage (Max Rds On, Min Rds On)	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs	Package / Case	Power Dissipation (Max) [Max]	Technology	Supplier Device Package	Vgs(th) (Max) @ Id	Mounting Type	Gate Charge (Qg) (Max) @ Vgs [Max]	Operating Temperature [Min]	Operating Temperature [Max]	FET Type
Infineon Technologies AUIRFP4568	30 V	10470 pF	171 A	10 V	150 V	5.9 mOhm	TO-247-3	517 W	MOSFET (Metal Oxide)	TO-247AC	5 V	Through Hole	227 nC	-55 °C	175 ░C	N-Channel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 150 V 171A (Tc) 517W (Tc) Through Hole TO-247AC
