FW50A4R70JA
ActiveBourns Inc.

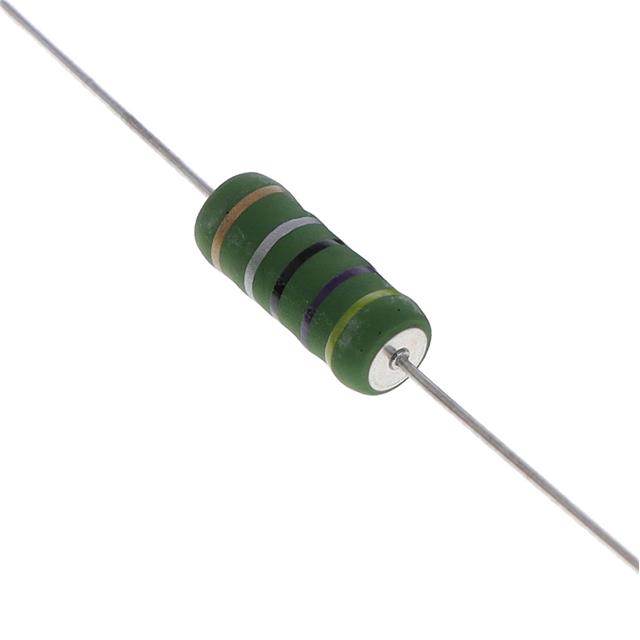

RES 4.7 OHM 5% 5W AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FW50A4R70JA
ActiveBourns Inc.
RES 4.7 OHM 5% 5W AXIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FW50A4R70JA |
|---|---|
| Composition | Wirewound |
| Features | Safety, Fusible |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 5 W |
| Resistance | 4.7 Ohms |
| Size / Dimension [diameter] | 0.295 in |
| Size / Dimension [diameter] | 7.5 mm |
| Size / Dimension [x] | 0.709 in |
| Size / Dimension [x] | 18 mm |
| Supplier Device Package | Axial |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
FW50A Series
| Part | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Supplier Device Package | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Features | Temperature Coefficient | Number of Terminations | Tolerance | Resistance | Composition |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | 5 W | 155 °C | -55 °C | Axial | Axial | 0.709 in | 0.295 in | 7.5 mm | 18 mm | Fusible Safety | 200 ppm/°C | 2 | 5 % | 10 Ohms | Wirewound |
Bourns Inc. | 5 W | 155 °C | -55 °C | Axial | Axial | 0.709 in | 0.295 in | 7.5 mm | 18 mm | Fusible Safety | 200 ppm/°C | 2 | 5 % | 47 Ohms | Wirewound |
Bourns Inc. | 5 W | 155 °C | -55 °C | Axial | Axial | 0.709 in | 0.295 in | 7.5 mm | 18 mm | Fusible Safety | 200 ppm/°C | 2 | 5 % | 4.7 Ohms | Wirewound |
Bourns Inc. | 5 W | 155 °C | -55 °C | Axial | Axial | 0.709 in | 0.295 in | 7.5 mm | 18 mm | Fusible Safety | 200 ppm/°C | 2 | 5 % | 68 Ohms | Wirewound |
Bourns Inc. | 5 W | 155 °C | -55 °C | Axial | Axial | 0.709 in | 0.295 in | 7.5 mm | 18 mm | Fusible Safety | 200 ppm/°C | 2 | 5 % | 100 Ohms | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.77 | |
| 10 | $ 0.63 | |||
| 25 | $ 0.59 | |||
| 50 | $ 0.54 | |||
| 100 | $ 0.44 | |||
| 250 | $ 0.40 | |||
| Tape & Box (TB) | 500 | $ 0.34 | ||
| 1000 | $ 0.27 | |||
| 2500 | $ 0.27 | |||
| 5000 | $ 0.26 | |||
| 12500 | $ 0.25 | |||
| 25000 | $ 0.25 | |||
Description
General part information
FW50A Series
4.7 Ohms ±5% 5W Through Hole Resistor Axial Fusible, Safety Wirewound
