Q-0L02Y0008036i

Active

Amphenol Custom Cable

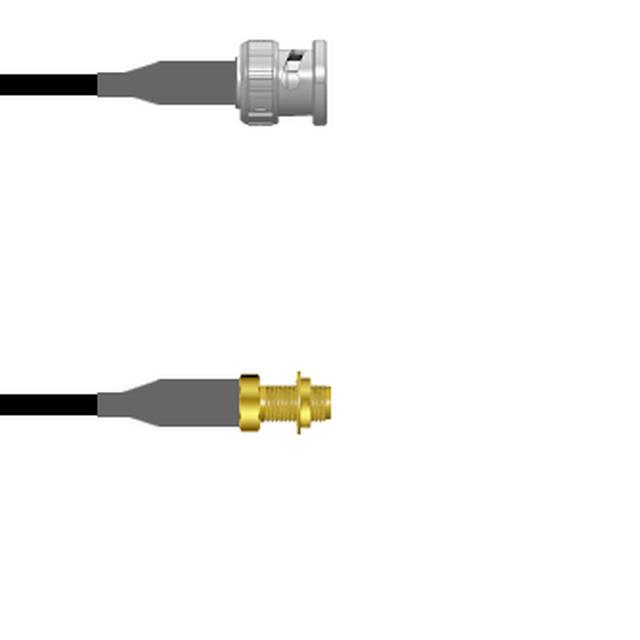

CBL ASSY BNC-SMA PLUG-JACK 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0L02Y0008036i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA PLUG-JACK 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0L02Y0008036i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0L02Y0 Series

Part	2nd Connector Mounting Feature	2nd Connector Mounting Type	Cable Type	2nd Connector	1st Connector Mounting Type	Style	Length	Length	Length	1st Contact Gender	Features	Color	2nd Contact Gender	1st Connector	Frequency - Max [Max]	Overall Impedance	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0L02Y0008072i	Bulkhead - Front Side Nut	Panel Mount	RG-58	SMA Jack	Free Hanging (In-Line)	BNC to SMA	6 ft	72 in	1.8 m	Male	Shielded	Black	Female	BNC Plug	4 GHz	50 Ohms
Amphenol Custom Cable Q-0L02Y0008001M	Bulkhead - Front Side Nut	Panel Mount	RG-58	SMA Jack	Free Hanging (In-Line)	BNC to SMA	3.3 ft	39.4 in	1 m	Male	Shielded	Black	Female	BNC Plug	4 GHz	50 Ohms
Amphenol Custom Cable Q-0L02Y0008.75M	Bulkhead - Front Side Nut	Panel Mount	RG-58	SMA Jack	Free Hanging (In-Line)	BNC to SMA		29.53 "	750 mm	Male	Shielded	Black	Female	BNC Plug	4 GHz	50 Ohms
Amphenol Custom Cable Q-0L02Y0008003M	Bulkhead - Front Side Nut	Panel Mount	RG-58	SMA Jack	Free Hanging (In-Line)	BNC to SMA	9.8 '	118.1 in	3 m	Male	Shielded	Black	Female	BNC Plug	4 GHz	50 Ohms
Amphenol Custom Cable Q-0L02Y0008084i	Bulkhead - Front Side Nut	Panel Mount	RG-58	SMA Jack	Free Hanging (In-Line)	BNC to SMA	7 ft	84 in	2.1 m	Male	Shielded	Black	Female	BNC Plug	4 GHz	50 Ohms
Amphenol Custom Cable Q-0L02Y00081.5M	Bulkhead - Front Side Nut	Panel Mount	RG-58	SMA Jack	Free Hanging (In-Line)	BNC to SMA	4.9 ft	59.1 in	1.5 m	Male	Shielded	Black	Female	BNC Plug	4 GHz	50 Ohms
Amphenol Custom Cable Q-0L02Y0008.25M	Bulkhead - Front Side Nut	Panel Mount	RG-58	SMA Jack	Free Hanging (In-Line)	BNC to SMA				Male	Shielded	Black	Female	BNC Plug	4 GHz	50 Ohms	9.843 "	250 mm
Amphenol Custom Cable Q-0L02Y0008036i	Bulkhead - Front Side Nut	Panel Mount	RG-58	SMA Jack	Free Hanging (In-Line)	BNC to SMA		36 in	91.44 cm	Male	Shielded	Black	Female	BNC Plug	4 GHz	50 Ohms
Amphenol Custom Cable Q-0L02Y0008018i	Bulkhead - Front Side Nut	Panel Mount	RG-58	SMA Jack	Free Hanging (In-Line)	BNC to SMA				Male	Shielded	Black	Female	BNC Plug	4 GHz	50 Ohms		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0L02Y0008060i	Bulkhead - Front Side Nut	Panel Mount	RG-58	SMA Jack	Free Hanging (In-Line)	BNC to SMA	5 ft	5 '	1.5 m	Male	Shielded	Black	Female	BNC Plug	4 GHz	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 79.85
		25	$ 78.28
		50	$ 76.71
		100	$ 75.15
		250	$ 73.58

Description

General part information

Q-0L02Y0 Series

Cable Assembly Coaxial BNC to SMA RG-58 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
