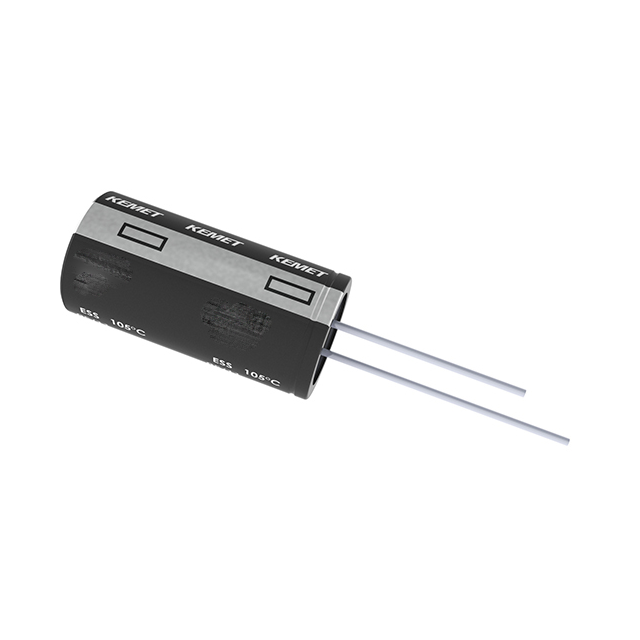

ESS226M016AC2AA

Active

KEMET

CAP ALUM 22UF 20% 16V RADIAL TH

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 22UF 20% 16V RADIAL TH

Technical Specifications

Parameters and characteristics for this part

Specification	ESS226M016AC2AA

Applications	General Purpose
Capacitance	22 µF
Height - Seated (Max) [Max] [z]	0.335 in
Height - Seated (Max) [Max] [z]	8.5 mm
Lead Spacing	2 mm
Lead Spacing	0.079 in
Lifetime @ Temp.	1000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	66 mA
Ripple Current @ Low Frequency	44 mA
Size / Dimension [diameter]	5 mm
Size / Dimension [diameter]	0.197 "
Tolerance	20 %
Voltage - Rated	16 V

Part	Lifetime @ Temp.	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Ripple Current @ High Frequency	Tolerance	Capacitance	Mounting Type	Ripple Current @ Low Frequency	Polarization	Package / Case	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]
KEMET ESS226M016AC2AA	1000 Hrs	General Purpose	0.335 in	8.5 mm	16 V	66 mA	20 %	22 µF	Through Hole	44 mA	Polar	Radial Can	2 mm	0.079 in	-40 °C	105 ░C	5 mm	0.197 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
