M300-MC31005M1-0300L

Active

Harwin Inc.

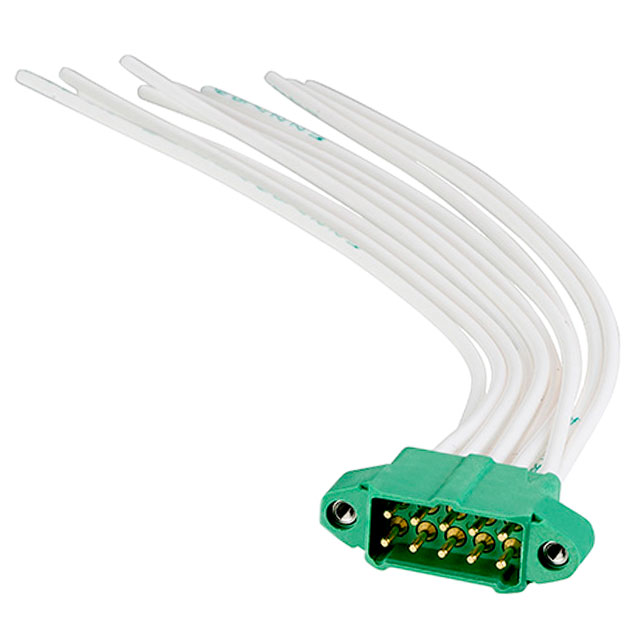

5+5 POS. MALE DIL 22AWG CABLE ASSEMBLY, 300MM, SINGLE-END, JACKSCREWS

Search across all available documentation for this part.

Active

Harwin Inc.

5+5 POS. MALE DIL 22AWG CABLE ASSEMBLY, 300MM, SINGLE-END, JACKSCREWS

Technical Specifications

Parameters and characteristics for this part

Specification	M300-MC31005M1-0300L

Cable Termination	Crimp
Connector Type	Plug to Individual Wire Leads
Contact Finish	Gold
Contact Finish Thickness	5.9 µin
Contact Finish Thickness	0.15 µm
Features	Mating Flange, Polarizing Key
Length [x]	0.984 '
Length [x]	11.81 "
Length [x]	300 mm
Number of Positions	10
Number of Rows	2
Pitch - Connector	0.118 in
Pitch - Connector	3 mm
Shielding	Unshielded

Part	Shielding	Number of Rows	Contact Finish	Features	Number of Positions	Length [x]	Length [x]	Length [x]	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Connector Type	Pitch - Connector	Pitch - Connector	Length	Length	Length
Harwin Inc. M300-MC31005M1-0300L	Unshielded	2	Gold	Mating Flange Polarizing Key	10	0.984 '	11.81 "	300 mm	5.9 µin	0.15 µm	Crimp	Plug to Individual Wire Leads	0.118 in	3 mm
Harwin Inc. M300-MC31005M1-0450L	Unshielded	2	Gold	Mating Flange Polarizing Key	10	17.76 in		450 mm	5.9 µin	0.15 µm	Crimp	Plug to Individual Wire Leads	0.118 in	3 mm
Harwin Inc. M300-MC31005M1-0150L	Unshielded	2	Gold	Mating Flange Polarizing Key	10				5.9 µin	0.15 µm	Crimp	Plug to Individual Wire Leads	0.118 in	3 mm	150 mm	5.91 "	0.492 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 35.99
Newark	Each	100	$ 43.50
		250	$ 42.02

General part information

10 Position Cable Assembly Rectangular Plug to Individual Wire Leads 0.984' (300.00mm, 11.81")
