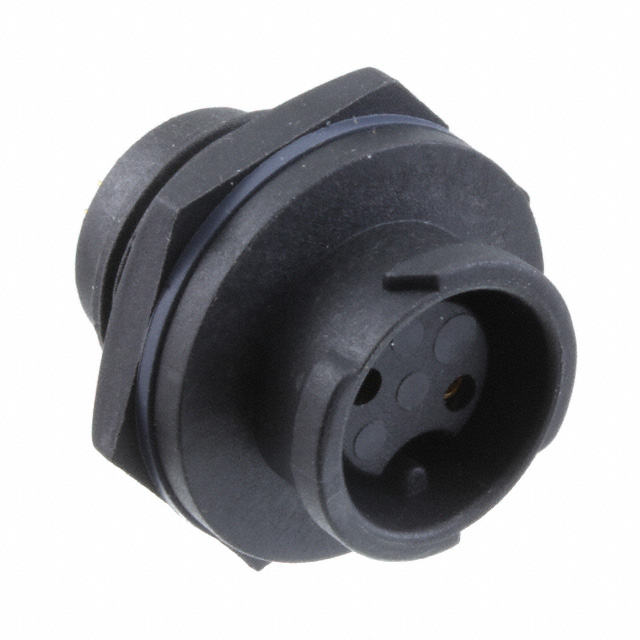

BD-02RMFS-QC8001

Active

Amphenol LTW

CONN RCPT FMALE 2P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT FMALE 2P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	BD-02RMFS-QC8001

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Voltage Rating	300 VAC

Part	Contact Finish - Mating	Mounting Feature	Primary Material	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Orientation	Number of Positions	Fastening Type	Material Flammability Rating	Current Rating (Amps)	Voltage Rating	Shell Size - Insert	Color	Shielding	Shell Material	Insert Material	Contact Material
Amphenol LTW BD-02RMFS-QC8001	Gold	Bulkhead - Rear Side Nut	Plastic	IP68 - Dust Tight Waterproof	-40 °C	105 ░C	Receptacle Female Sockets	Keyed	2	Push-Pull	UL94 V-0	5 A	300 VAC	B	Black	Unshielded	Glass Filled Nylon Polyamide (PA)	Polyamide (PA) Nylon Glass Filled	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (Data) Position Circular Connector Receptacle, Female Sockets Solder Cup
