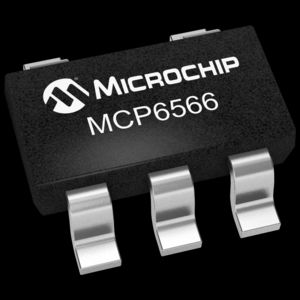

MCP6566UT-E/OTVAO

Active

Microchip Technology

1.8V LOW-POWER OPEN-DRAIN OUTPUT COMPARATOR

Find alt

Alpha

MCP6566UT-E/OTVAO

Active

Microchip Technology

1.8V LOW-POWER OPEN-DRAIN OUTPUT COMPARATOR

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

MCP6566 Series

These comparators are optimized for low power, single-supply operation with greater than rail-to-rail input operation. The open drain output of the MCP6566/7/9 family with a pull-up resistor, can be used as a level shifter for any desired voltage from 1.6V to 5.5V. AEC-Q100 Grade 1 qualification is available for this device

Technical Specifications

Parameters and characteristics for this part

Specification	MCP6566UT-E/OTVAO

CMRR (Typ)	66 dB
Current - Input Bias (Max)	1 pA
Current - Output (Typ)	50 mA
Current - Quiescent (Max)	130 µA
Grade	Automotive
Hysteresis	5 mV
Mounting Type	Surface Mount
Number of Elements	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Output Type	CMOS, Open-Drain
Package Name	SOT-23-5
Propagation Delay (Max)	80 ns
PSRR (Typ)	70 dB
Qualification	AEC-Q100
Supply Configuration	Dual, Single
Type	Standard (General Purpose)
Voltage - Input Offset (Max)	10 mV
Voltage - Supply (Single) Maximum	5.5 V
Voltage - Supply (Single) Minimum	1.8 V

MCP6566 Series

1.8V Low-Power Open-Drain Output Comparator

Part	Mounting Type	Type	Number of Elements	Voltage - Input Offset (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Output Type	CMRR (Typ)	PSRR (Typ)	Qualification	Propagation Delay (Max)	Hysteresis	Current - Quiescent (Max)	Voltage - Supply (Single) Minimum	Supply Configuration	Voltage - Supply (Single) Maximum	Current - Output (Typ)	Grade	Current - Input Bias (Max)	Package Name	Package / Case
Microchip Technology MCP6566T-E/OTVAO	Surface Mount	General Purpose Standard (General Purpose)	1	10 mV	125 °C	-40 °C	CMOS Open-Drain	66 dB	70 dB	AEC-Q100	80 ns	5 mV	130 µA	1.8 V	Dual Single	5.5 V	50 mA	Automotive	1 pA	SOT-23-5
Microchip Technology MCP6566UT-E/OTVAO	Surface Mount	Standard (General Purpose)	1	10 mV	125 °C	-40 °C	CMOS Open-Drain	66 dB	70 dB	AEC-Q100	80 ns	5 mV	130 µA	1.8 V	Dual Single	5.5 V	50 mA	Automotive	1 pA	SOT-23-5
Microchip Technology MCP6566T-E/LTVAO	Surface Mount	Standard (General Purpose)	1	10 mV	125 °C	-40 °C	CMOS Open-Drain	66 dB	70 dB	AEC-Q100	80 ns	5 mV	130 µA	1.8 V	Dual Single	5.5 V	50 mA	Automotive	1 pA	SC-70-5	5-TSSOP SC-70-5 SOT-353
Microchip Technology MCP6566RT-E/OT	Surface Mount	Standard (General Purpose)	1	10 mV	125 °C	-40 °C	CMOS Open-Drain	66 dB	70 dB		80 ns	5 mV	130 µA	1.8 V	Dual Single	5.5 V	50 mA		1 pA	SOT-23-5
Microchip Technology MCP6566T-E/LT	Surface Mount	General Purpose Standard (General Purpose)	1	10 mV	125 °C	-40 °C	CMOS Open-Drain	66 dB	70 dB		80 ns	5 mV	130 µA	1.8 V	Dual Single	5.5 V	50 mA		1 pA	SC-70-5	5-TSSOP SC-70-5 SOT-353
Microchip Technology MCP6566T-E/OT	Surface Mount	General Purpose Standard (General Purpose)	1	10 mV	125 °C	-40 °C	CMOS Open-Drain	66 dB	70 dB		80 ns	5 mV	130 µA	1.8 V	Dual Single	5.5 V	50 mA		1 pA	SOT-23-5
Microchip Technology MCP6566UT-E/OT	Surface Mount	General Purpose Standard (General Purpose)	1	10 mV	125 °C	-40 °C	CMOS Open-Drain	66 dB	70 dB		80 ns	5 mV	130 µA	1.8 V	Dual Single	5.5 V	50 mA		1 pA	SOT-23-5
