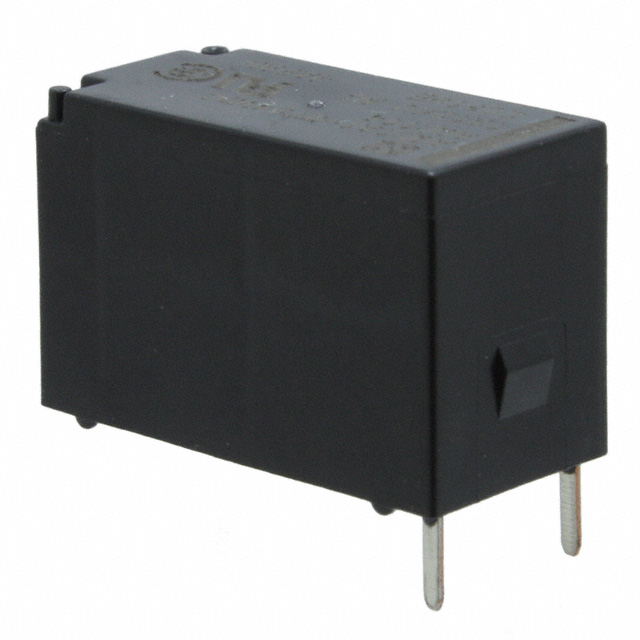

AQC1A1-ZT5VDC
ObsoletePanasonic Electric Works
SSR RELAY SPST-NO 1A 75-125V
Deep-Dive with AI
DocumentsHow to Read Date Codes
Technical Specifications
Parameters and characteristics for this part
| Specification | AQC1A1-ZT5VDC |
|---|---|
| Approval Agency | UR, CSA, TUV |
| Load Current | 1 A |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | AC, Zero Cross |
| Package / Case | Module |
| Termination Style | PC Pin |
| Voltage - Input [Max] | 6 V |
| Voltage - Input [Min] | 4 V |
| Voltage - Load [Max] | 125 V |
| Voltage - Load [Min] | 75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AQC1A1 Series
Solid State SPST-NO (1 Form A) Module
