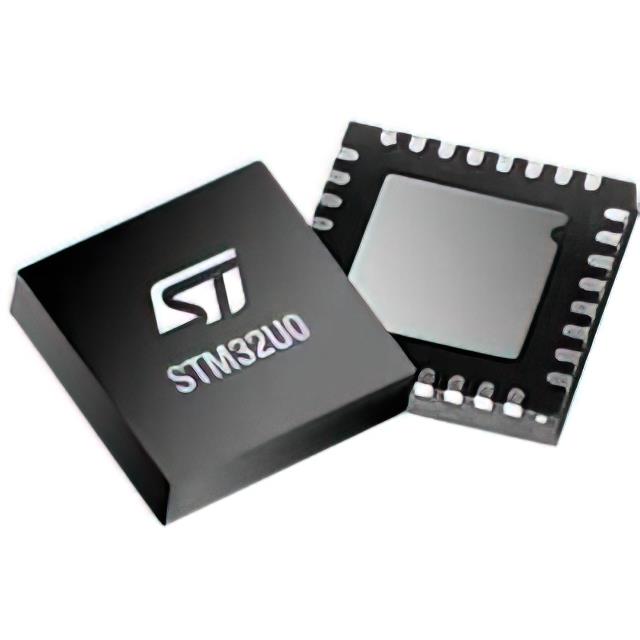

STM32U083RCT6

Active

STMicroelectronics

ULTRA-LOW-POWER ARM CORTEX-M0+ MCU WITH 256 KBYTES OF FLASH MEMORY, LCD, USB, AES, 56 MHZ CPU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDS14463 AN5418 +82

STM32U083RCT6

Active

STMicroelectronics

ULTRA-LOW-POWER ARM CORTEX-M0+ MCU WITH 256 KBYTES OF FLASH MEMORY, LCD, USB, AES, 56 MHZ CPU

Deep-Dive with AI

DocumentsDS14463 AN5418 +82

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STM32U083RCT6

Connectivity	LINbus, USB, UART/USART, IrDA, I2C, SPI
Core Processor	ARM® Cortex®-M0+
Core Size	32-Bit
Data Converters	D/A 1x12b, A/D 16x12b SAR
Mounting Type	Surface Mount
Number of I/O	53
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	External, Internal
Package / Case	64-LQFP
Peripherals	LCD, Crypto - AES, Brown-out Detect/Reset, CapSense, Temp Sensor, WDT, PWM, TRNG, LVD, DMA
Program Memory Size	256 KB
Program Memory Type	FLASH
RAM Size	40 K
Speed	56 MHz
Supplier Device Package	64-LQFP (10x10)
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	1.71 V

STM32U083CC Series

Ultra-low-power Arm Cortex-M0+ MCU with 256 Kbytes of Flash memory, LCD, USB, AES, 56 MHz CPU

Part	Operating Temperature [Max]	Operating Temperature [Min]	Core Size	Mounting Type	Oscillator Type	Core Processor	Connectivity	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Supplier Device Package	Package / Case	Peripherals	Data Converters	Speed	RAM Size	Program Memory Size	Program Memory Type	Number of I/O
STMicroelectronics STM32U083RCT6	85 °C	-40 °C	32-Bit	Surface Mount	External Internal	ARM® Cortex®-M0+	I2C IrDA LINbus SPI UART/USART USB	3.6 V	1.71 V	64-LQFP (10x10)	64-LQFP	Brown-out Detect/Reset CapSense Crypto - AES DMA LCD LVD PWM Temp Sensor TRNG WDT	A/D 16x12b SAR D/A 1x12b	56 MHz	40 K	256 KB	FLASH	53
STMicroelectronics STM32U083CCT6	85 °C	-40 °C	32-Bit	Surface Mount	External Internal	ARM® Cortex®-M0+	I2C IrDA LINbus SPI UART/USART USB	3.6 V	1.71 V	48-LQFP (7x7)	48-LQFP	Brown-out Detect/Reset CapSense Crypto - AES DMA LCD LVD PWM Temp Sensor TRNG WDT	A/D 16x12b SAR D/A 1x12b	56 MHz	40 K	256 KB	FLASH	39 I/O
STMicroelectronics STM32U083RCI6	85 °C	-40 °C	32-Bit	Surface Mount	External Internal	ARM® Cortex®-M0+	I2C IrDA LINbus SPI UART/USART USB	3.6 V	1.71 V	64-UFBGA (5x5)	64-UFBGA	Brown-out Detect/Reset CapSense Crypto - AES DMA LCD LVD PWM Temp Sensor TRNG WDT	A/D 16x12b SAR D/A 1x12b	56 MHz	40 K	256 KB	FLASH	53

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.89
		10	$ 3.26
		25	$ 2.84
		80	$ 2.42
		230	$ 2.15
		440	$ 2.01
		945	$ 1.88
		2400	$ 1.75
		4900	$ 1.67
Newark	Each	1	$ 4.38
		10	$ 3.32
		25	$ 3.22
		50	$ 3.13
		100	$ 3.03
		250	$ 2.94
		500	$ 2.85

Description

General part information

STM32U083CC Series

The STM32U083xC devices are ultra-low-power microcontrollers based on the high-performance Arm®Cortex®-M0+ 32-bit RISC core operating at a frequency of up to 56 MHz.

The STM32U083xC devices embed high-speed memories (256-Kbyte flash memory and 40-Kbyte SRAM with hardware parity check), and an extensive range of enhanced I/Os and peripherals connected to APB and AHB buses, and a 32-bit multi-AHB bus matrix.

They also embed protection mechanisms for embedded flash memory and SRAM, such as readout protection and write protection.
