8058-1G19
ObsoleteTE Connectivity AMP Connectors

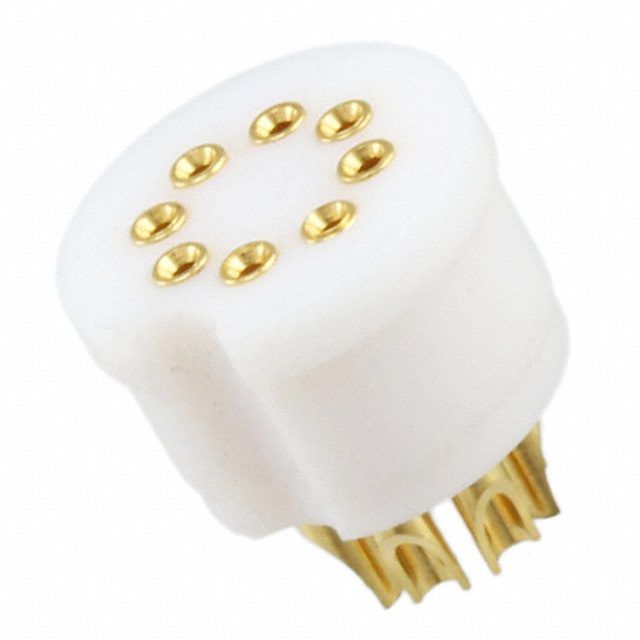

CONN TRANSIST TO-5 8POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
8058-1G19
ObsoleteTE Connectivity AMP Connectors
CONN TRANSIST TO-5 8POS GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 8058-1G19 | 8058 Series |
|---|---|---|
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Gold | Gold |
| Contact Material - Mating | Beryllium Copper | Beryllium Copper |
| Contact Material - Post [custom] | Brass | Brass |
| Contact Resistance | 20 mOhm | 20 mOhm |
| Current Rating (Amps) | 3 A | 3 A |
| Features | - | Closed Frame |
| Housing Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Mounting Type | - | Through Hole |
| Number of Positions or Pins (Grid) | 8 | 3 - 10 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Termination | - | Solder |
| Termination Post Length | 3.18 mm | 3.18 mm |
| Termination Post Length | 0.125 in | 0.125 in |
| Type | Transistor, TO-5 | Transistor, TO-5 |
8058 Series
CONN TRANSIST TO-5 8POS GOLD
| Part | Contact Finish - Post | Type | Contact Resistance | Operating Temperature [Min] | Operating Temperature [Max] | Termination Post Length | Termination Post Length | Number of Positions or Pins (Grid) | Housing Material | Contact Material - Post [custom] | Current Rating (Amps) | Contact Material - Mating | Contact Finish - Mating | Features | Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 8058-1G19 | Gold | Transistor, TO-5 | 20 mOhm | -55 °C | 125 °C | 3.18 mm | 0.125 in | 8 | Polytetrafluoroethylene (PTFE) | Brass | 3 A | Beryllium Copper | Gold | |||
TE Connectivity AMP Connectors 8058-1G30 | Gold | Transistor, TO-5 | -55 °C | 125 °C | 4 | Polytetrafluoroethylene (PTFE) | Brass | Beryllium Copper | Gold | Closed Frame | Solder | |||||
TE Connectivity AMP Connectors 8058-1G29 | Gold | Transistor, TO-5 | -55 °C | 125 °C | 3 | Polytetrafluoroethylene (PTFE) | Brass | Beryllium Copper | Gold | Closed Frame | Solder | |||||
TE Connectivity AMP Connectors 8058-39G4 | Gold | Transistor, TO-5 | -55 °C | 125 °C | 8 | Polytetrafluoroethylene (PTFE) | Brass | Beryllium Copper | Gold | Closed Frame | Solder | Through Hole | ||||
TE Connectivity AMP Connectors 8058-1G45 | Gold | Transistor, TO-5 | -55 °C | 125 °C | 8 | Polytetrafluoroethylene (PTFE) | Brass | Beryllium Copper | Gold | Closed Frame | Solder | Through Hole | ||||
TE Connectivity AMP Connectors 8058-1G31 | Gold | Transistor, TO-5 | -55 °C | 125 °C | 10 | Polytetrafluoroethylene (PTFE) | Brass | Beryllium Copper | Gold | Closed Frame | Solder | Through Hole | ||||
TE Connectivity AMP Connectors 8058-1G32 | Gold | Transistor, TO-5 | -55 °C | 125 °C | 8 | Polytetrafluoroethylene (PTFE) | Brass | Beryllium Copper | Gold | Closed Frame | Solder | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
8058 Series
8 (Round) Pos Transistor, TO-5 Socket Gold Panel Mount
