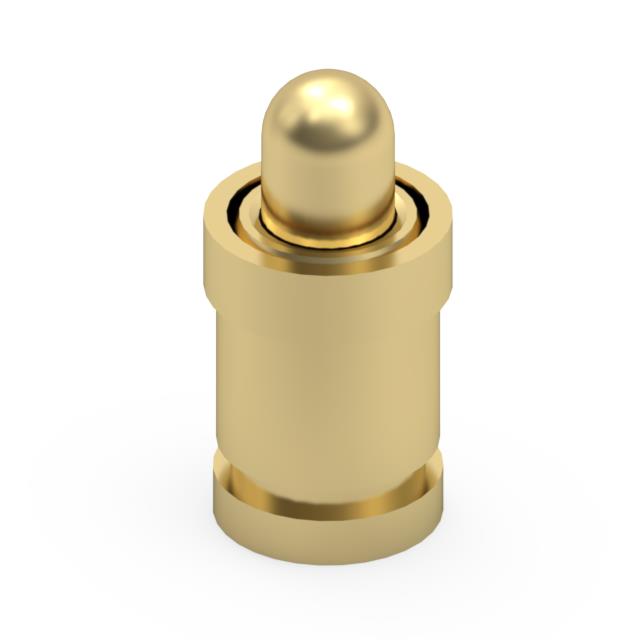

0910-8-57-20-76-14-11-0

Active
Mill-Max Manufacturing Corp.

CONTACT SPRING LOADED SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

0910-8-57-20-76-14-11-0 - 0910-8-57-20-76-14-11-0

0910-8-57-20-76-14-11-0

Active
Mill-Max Manufacturing Corp.

CONTACT SPRING LOADED SMD GOLD

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

Specification0910-8-57-20-76-14-11-0
Contact FinishGold
Contact Finish Thickness0.51 µm
Contact Finish Thickness20 µin
Contact MaterialBrass Alloy
Contact TypeSleeve & Plunger (Pogo Pins)
Current Rating (Amps)5.2 A
Mating Cycles1000000
Maximum Working Height [Max]0.155 in
Maximum Working Height [Max]3.94 mm
Minimum Working Height [Min]2.94 mm
Minimum Working Height [Min]0.116 in
Mounting TypeSurface Mount
Operating Force - Initial15 gf
Operating Force - Mid Compression60 gf
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pad Layout Dimension [custom]1.83 mm
Pad Layout Dimension [custom]0.072 in
Plunger Size [diameter]0.042 in
Plunger Size [diameter]1.07 mm
Recommended Working Height [z]0.135 in
Recommended Working Height [z]3.44 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.66
10$ 1.41
25$ 1.32
50$ 1.26
100$ 1.20
250$ 1.12
500$ 1.07
Digi-Reel® 1$ 1.66
10$ 1.41
25$ 1.32
50$ 1.26
100$ 1.20
250$ 1.12
500$ 1.07
Tape & Reel (TR) 1800$ 0.98
3600$ 0.93
5400$ 0.90
9000$ 0.87

Description

General part information

0910-8 Series

Contact Spring Surface Mount
