TMA-8MS-5MS-00

Active

CarlisleIT

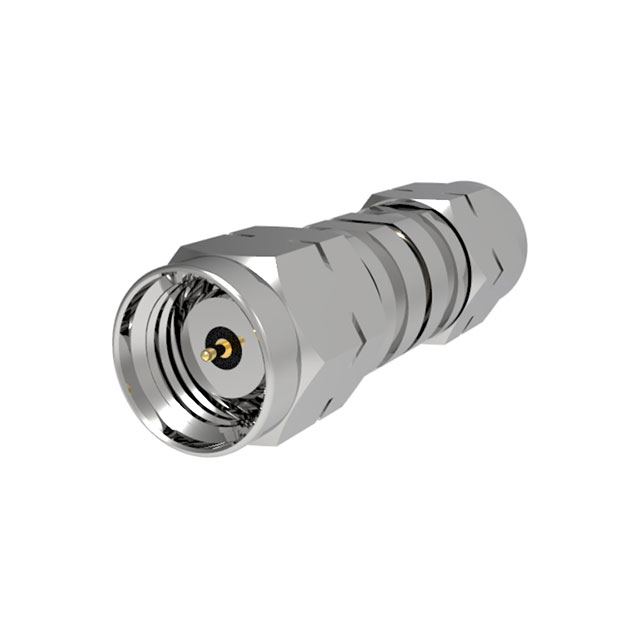

MW ADAPTER 1.85(M) TO 3.5(M)

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TMA-8MS-5MS-00

Active

CarlisleIT

MW ADAPTER 1.85(M) TO 3.5(M)

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 59.13
		10	$ 54.26
		25	$ 52.18
		50	$ 50.44
		100	$ 47.65

Description

General part information

TMA-8MS Series

Adapter Coaxial Connector 1.85mm Plug, Male Pin To 3.5mm Plug, Male Pin 50 Ohms

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TMA-8MS-5MS-00	TMA-8MS Series

Adapter Series [Max]	3.5 mm	1.85 - 3.5 mm
Adapter Series [Min]	1.85 mm	1.85 mm
Adapter Type	Plug to Plug	Plug to Jack, Plug to Plug
Body Material	Stainless Steel	Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Gender	Male to Male	Male to Male
Conversion Type	Between Series	Between Series, Same Series
Convert From (Adapter End)	1.85 mm	1.85 mm
Convert From (Adapter End)	Plug, Male Pin	Plug, Male Pin
Convert To (Adapter End)	-	2.4 - 2.92 mm
Convert To (Adapter End)	-	Female Socket, 1.85mm Jack, 1.85mm Plug, Male Pin, 3.5mm Jack, 2.4mm (APC-2.4, OS-50) Plug, Male Pin, 2.92mm (OS-2.9) Plug, Male Pin, OS-2.9 Jack, Female Socket
Frequency - Max [Max]	26.5 GHz	26.5 - 65 GHz
Impedance	50 Ohms	50 Ohms
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Style	Straight	Straight

TMA-8MS Series

MW ADAPTER 1.85(M) TO 2.4(F)

Part	Mounting Type	Style	Body Material	Convert To (Adapter End)	Center Contact Material	Impedance	Convert From (Adapter End)	Convert From (Adapter End)	Conversion Type	Frequency - Max [Max]	Adapter Type	Convert To (Adapter End)	Adapter Series [Min]	Adapter Series [Max]	Center Gender
CarlisleIT TMA-8MS-4FS-00	Free Hanging (In-Line)	Straight	Stainless Steel	2.4 mm	Beryllium Copper	50 Ohms	1.85 mm	Plug, Male Pin	Between Series	50 GHz	Plug to Jack
CarlisleIT TMA-8MS-8FS-00	Free Hanging (In-Line)	Straight	Stainless Steel		Beryllium Copper	50 Ohms	1.85 mm	Plug, Male Pin	Same Series	65 GHz	Plug to Jack	1.85mm Jack, Female Socket	1.85 mm	1.85 mm
CarlisleIT TMA-8MS-8MS-00	Free Hanging (In-Line)	Straight	Stainless Steel		Beryllium Copper	50 Ohms	1.85 mm	Plug, Male Pin	Same Series	65 GHz	Plug to Plug	1.85mm Plug, Male Pin	1.85 mm	1.85 mm	Male to Male
CarlisleIT TMA-8MS-5FS-00	Free Hanging (In-Line)	Straight	Stainless Steel		Beryllium Copper	50 Ohms	1.85 mm	Plug, Male Pin	Between Series	26.5 GHz	Plug to Jack	3.5mm Jack, Female Socket	1.85 mm	3.5 mm
CarlisleIT TMA-8MS-4MS-00	Free Hanging (In-Line)	Straight	Stainless Steel		Beryllium Copper	50 Ohms	1.85 mm	Plug, Male Pin	Between Series	50 GHz	Plug to Plug	2.4mm (APC-2.4, OS-50) Plug, Male Pin			Male to Male
CarlisleIT TMA-8MS-5MS-00	Free Hanging (In-Line)	Straight	Stainless Steel		Beryllium Copper	50 Ohms	1.85 mm	Plug, Male Pin	Between Series	26.5 GHz	Plug to Plug		1.85 mm	3.5 mm	Male to Male
CarlisleIT TMA-8MS-9MS-00	Free Hanging (In-Line)	Straight	Stainless Steel		Beryllium Copper	50 Ohms	1.85 mm	Plug, Male Pin	Between Series	40 GHz	Plug to Plug	2.92mm (OS-2.9) Plug, Male Pin	1.85 mm	2.92 mm	Male to Male
CarlisleIT TMA-8MS-9FS-00	Free Hanging (In-Line)	Straight	Stainless Steel	2.92 mm	Beryllium Copper	50 Ohms	1.85 mm	Plug, Male Pin	Between Series	40 GHz	Plug to Jack	OS-2.9 Jack, Female Socket	1.85 mm	2.92 mm
