SBC4-100-292

Active

KEMET

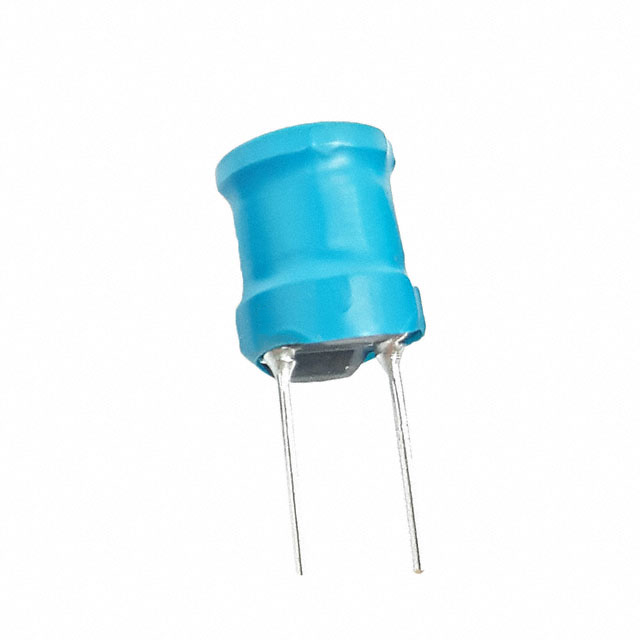

INDUCTOR, 10UH, 20%, 2.9A, RADIAL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SBC4-100-292 +1

SBC4-100-292

Active

KEMET

INDUCTOR, 10UH, 20%, 2.9A, RADIAL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet SBC4-100-292 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SBC4-100-292

Current - Saturation (Isat)	4.6 A
Current Rating (Amps)	2.9 A
DC Resistance (DCR) [Max]	40 mOhm
Height - Seated (Max) [Max] [z]	12 mm
Height - Seated (Max) [Max] [z]	0.472 "
Inductance	10 µH
Inductance Frequency - Test	10 kHz
Material - Core	Ferrite
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Package / Case	Radial, Vertical Cylinder
Shielding	Unshielded
Size / Dimension [diameter]	9 mm
Size / Dimension [diameter]	0.354 in
Tolerance	20 %
Type	Wirewound, Drum Core

SBC4 Series

Part	Tolerance	Mounting Type	Inductance Frequency - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR) [Max]	Inductance	Current Rating (Amps)	Shielding	Package / Case	Material - Core	Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Saturation (Isat)
KEMET SBC4-100-292	20 %	Through Hole	10 kHz	12 mm	0.472 "	40 mOhm	10 µH	2.9 A	Unshielded	Radial Vertical Cylinder	Ferrite	Drum Core Wirewound	9 mm	0.354 in	-20 C	105 ░C	4.6 A
KEMET SBC4-6R8-452	20 %	Through Hole	10 kHz	12 mm	0.472 "	30 mOhm	6.8 µH	4.5 A	Unshielded	Radial Vertical Cylinder	Ferrite	Drum Core Wirewound	9 mm	0.354 in	-20 C	105 ░C	5.6 A
KEMET SBC4-680-122	10 %	Through Hole	10 kHz	12 mm	0.472 "	190 mOhm	68 µH	1.2 A	Unshielded	Radial Vertical Cylinder	Ferrite	Drum Core Wirewound	9 mm	0.354 in	-20 C	105 ░C	1.8 A
KEMET SBC4-222-211	10 %	Through Hole	10 kHz	14.5 mm	0.571 in	4.97 Ohm	2.2 mH	0.21 A	Unshielded	Radial Vertical Cylinder	Ferrite	Drum Core Wirewound	9 mm	0.354 in	-20 C	105 ░C	320 mA
KEMET SBC4-1R5-712	20 %	Through Hole	10 kHz	12 mm	0.472 "	10 mOhm	1.5 µH	7.1 A	Unshielded	Radial Vertical Cylinder	Ferrite	Drum Core Wirewound	9 mm	0.354 in	-20 C	105 ░C	12.6 A
KEMET SBC4-1R0-742	20 %	Through Hole	10 kHz	12 mm	0.472 "	10 mOhm	1 µH	7.4 A	Unshielded	Radial Vertical Cylinder	Ferrite	Drum Core Wirewound	9 mm	0.354 in	-20 C	105 ░C
KEMET SBC4-152-221	10 %	Through Hole	10 kHz	14.5 mm	0.571 in	3.24 Ohm	1.5 mH	0.22 A	Unshielded	Radial Vertical Cylinder	Ferrite	Drum Core Wirewound	9 mm	0.354 in	-20 C	105 ░C	380 mA
KEMET SBC4-150-232	20 %	Through Hole	10 kHz	12 mm	0.472 "		15 µH		Unshielded	Radial Vertical Cylinder	Ferrite	Drum Core Wirewound	9 mm	0.354 in	-20 C	105 ░C	4 A
KEMET SBC4-330-182	20 %	Through Hole	10 kHz	12 mm	0.472 "	90 mOhm	33 µH	1.8 A	Unshielded	Radial Vertical Cylinder	Ferrite	Drum Core Wirewound	9 mm	0.354 in	-20 C	105 ░C	2.6 A
KEMET SBC4-221-721	10 %	Through Hole	10 kHz	14.5 mm	0.571 in	470 mOhm	220 µH	0.72 A	Unshielded	Radial Vertical Cylinder	Ferrite	Drum Core Wirewound	9 mm	0.354 in	-20 C	105 ░C	1 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.82
		10	$ 0.64
		25	$ 0.58
		50	$ 0.54
		100	$ 0.50
		250	$ 0.45
		500	$ 0.41
		1000	$ 0.38
		2500	$ 0.36
Newark	Each	10	$ 0.56
		25	$ 0.53
		50	$ 0.50
		100	$ 0.47
		500	$ 0.45
		1000	$ 0.44
		2500	$ 0.38

Description

General part information

SBC4 Series

10 µH Unshielded Drum Core, Wirewound Inductor 2.9 A 40mOhm Max Radial, Vertical Cylinder

Documents

Technical documentation and resources

Datasheet

SBC4-100-292

Technical Data Sheet EN

Datasheet
