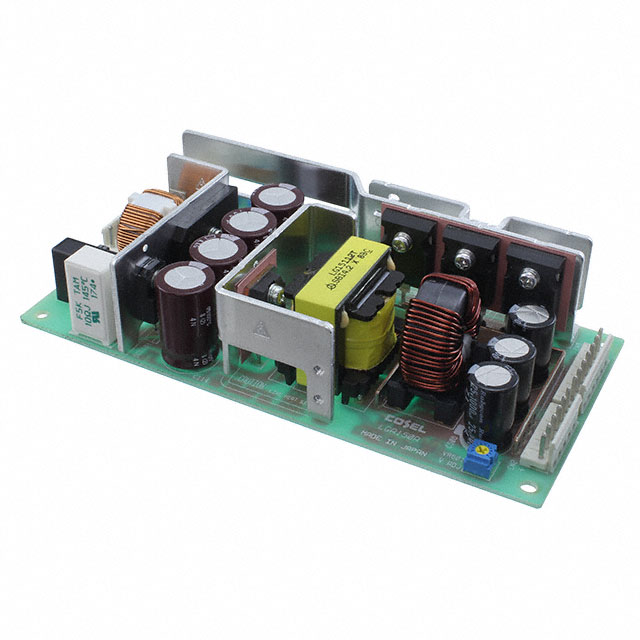

LGA150A-12-Y

Active

Cosel USA, Inc.

AC/DC CONVERTER 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LGA150A-12-Y

Active

Cosel USA, Inc.

AC/DC CONVERTER 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LGA150A-12-Y

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	12.5 A
Efficiency	84.5 %
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Size / Dimension [x]	6.3 "
Size / Dimension [x]	160 mm
Size / Dimension [y]	74.9 mm
Size / Dimension [y]	2.95 in
Size / Dimension [z]	39.1 mm
Size / Dimension [z]	1.54 "
Type	Open Frame
Voltage - Input [Max]	132 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	2000 V
Voltage - Output 1	12 V

LGA150A Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 1	Applications	Number of Outputs	Current - Output 1	Approval Agency	Mounting Type	Type	Voltage - Isolation
Cosel USA, Inc. LGA150A-24-SJ1	-10 °C	60 °C	87 %	74.9 mm	39.1 mm	6.3 "	2.95 in	1.54 "	160 mm	132 VAC	85 VAC	24 V	ITE (Commercial)	1	6.3 A	CE cURus TUV	Chassis Mount	Open Frame	2000 V
Cosel USA, Inc. LGA150A-24-HJ1	-10 °C	60 °C	87 %	74.9 mm	39.1 mm	6.3 "	2.95 in	1.54 "	160 mm	132 VAC	85 VAC	24 V	ITE (Commercial)	1	6.3 A	CE cURus TUV	Chassis Mount	Open Frame	2000 V
Cosel USA, Inc. LGA150A-24-HCJ1	-10 °C	60 °C	87 %	74.9 mm	39.1 mm	6.3 "	2.95 in	1.54 "	160 mm	132 VAC	85 VAC	24 V	ITE (Commercial)	1	6.3 A	CE cURus TUV	Chassis Mount	Open Frame	2000 V
Cosel USA, Inc. LGA150A-24-SNJ1	-10 °C	60 °C	87 %	74.9 mm	39.1 mm	6.3 "	2.95 in	1.54 "	160 mm	132 VAC	85 VAC	24 V	ITE (Commercial)	1	6.3 A	CE cURus TUV	Chassis Mount	Enclosed	2000 V
Cosel USA, Inc. LGA150A-3R3-Y	-10 °C	60 °C	76 %	74.9 mm	39.1 mm	6.3 "	2.95 in	1.54 "	160 mm	132 VAC	85 VAC	3.3 V	ITE (Commercial)	1	30 A	CE cURus TUV	Chassis Mount	Open Frame	2000 V
Cosel USA, Inc. LGA150A-24-J1Y	-10 °C	60 °C	87 %	74.9 mm	39.1 mm	6.3 "	2.95 in	1.54 "	160 mm	132 VAC	85 VAC	24 V	ITE (Commercial)	1	6.3 A	CE cURus TUV	Chassis Mount	Open Frame	2000 V
Cosel USA, Inc. LGA150A-24-HJ1Y	-10 °C	60 °C	87 %	74.9 mm	39.1 mm	6.3 "	2.95 in	1.54 "	160 mm	132 VAC	85 VAC	24 V	ITE (Commercial)	1	6.3 A	CE cURus TUV	Chassis Mount	Open Frame	2000 V
Cosel USA, Inc. LGA150A-24-SN	-10 °C	60 °C	87 %	74.9 mm	39.1 mm	6.3 "	2.95 in	1.54 "	160 mm	132 VAC	85 VAC	24 V	ITE (Commercial)	1	6.3 A	CE cURus TUV	Chassis Mount	Enclosed	2000 V
Cosel USA, Inc. LGA150A-12-Y	-10 °C	60 °C	84.5 %	74.9 mm	39.1 mm	6.3 "	2.95 in	1.54 "	160 mm	132 VAC	85 VAC	12 V	ITE (Commercial)	1	12.5 A	CE cURus TUV	Chassis Mount	Open Frame	2000 V
Cosel USA, Inc. LGA150A-5-SNY	-10 °C	60 °C		74.9 mm	39.1 mm	6.3 "	2.95 in	1.54 "	160 mm	132 VAC	85 VAC	5 V	ITE (Commercial)	1	30 A	CE cURus TUV	Chassis Mount	Enclosed	2000 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 79.18

Description

General part information

LGA150A Series

Open Frame AC DC Converters 1 Output 12V 85 ~ 132 VAC Input
