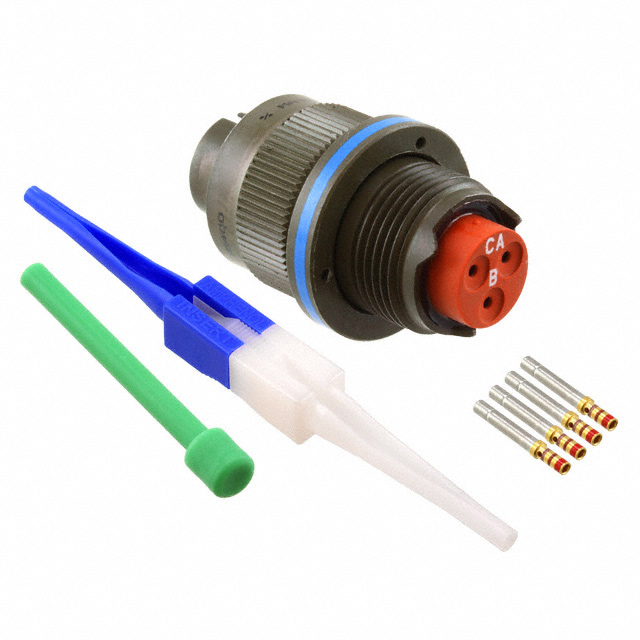

MS3456W10SL-3S

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 3POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	MS3456W10SL-3S

Applications	Aviation, Military, Automotive
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut
Grade	Military
Ingress Protection	Fluid Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size - Insert	10SL-3
Shielding	Unshielded
Termination	Crimp

Part	Applications	Mounting Type	Qualification	Shielding	Grade	Shell Size - Insert	Color	Orientation	Contact Finish - Mating	Shell Material	Primary Material	Features	Contact Material	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shell Finish	Ingress Protection	Number of Positions
Amphenol Aerospace Operations MS3456W10SL-3S	Automotive Aviation Military	Free Hanging (In-Line)	MIL-DTL-5015	Unshielded	Military	10SL-3	Olive Drab	N	Gold	Aluminum	Metal	Coupling Nut	Copper Alloy	Crimp	1.27 µm	50 µin	-55 °C	347 °F	Female Sockets Plug	Olive Drab Cadmium	Fluid Resistant	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 (Power) Position Circular Connector Plug, Female Sockets Crimp
