ISL9204IRZ-T

Active

Intersil

IC BATT CHG LI-ION 1CELL 8DFN

Search across all available documentation for this part.

Active

Intersil

IC BATT CHG LI-ION 1CELL 8DFN

Technical Specifications

Parameters and characteristics for this part

IC BATT CHG LI-ION 1CELL 8DFN

Part	Mounting Type	Number of Cells	Current - Charging	Battery Chemistry	Voltage - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Fault Protection	Battery Pack Voltage	Supplier Device Package	Charge Current - Max [Max]
Intersil ISL9204IRZ-T	Surface Mount	1	Constant - Programmable	Lithium Ion/Polymer	10 V	85 °C	-40 °C	8-VFDFN Exposed Pad	Over Temperature	4.2 V	8-DFN (2x3)	350 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	184	$ 1.63

General part information

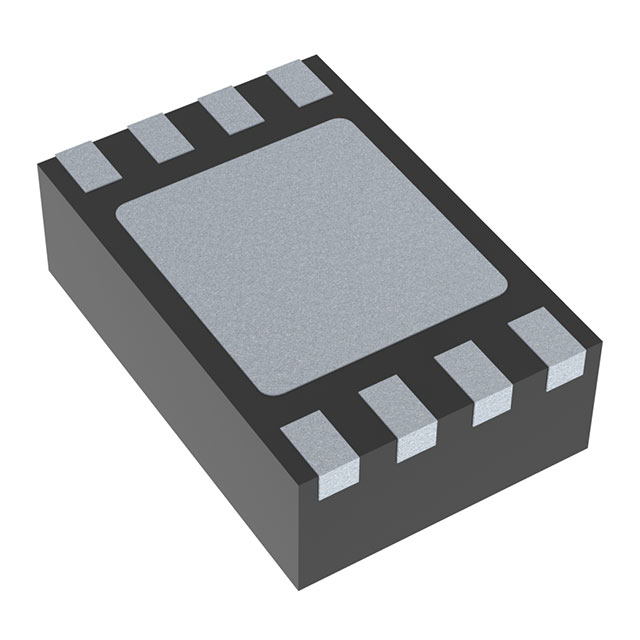

Charger IC Lithium Ion/Polymer 8-DFN (2x3)

Technical documentation and resources

No documents available
