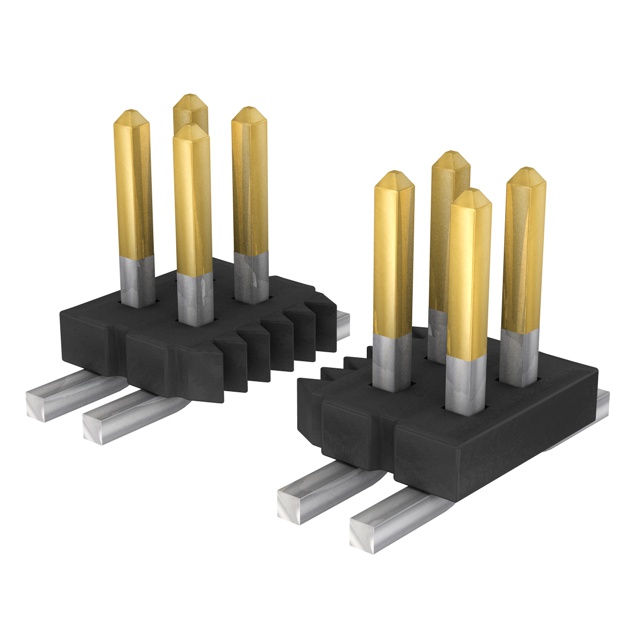

FTS-128-01-L-DV-P

Active

Samtec Inc.

CONN HEADER SMD 56POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FTS-128-01-L-DV-P

Active

Samtec Inc.

CONN HEADER SMD 56POS 1.27MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTS-128-01-L-DV-P

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.034 in
Insulation Height	0.86 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	56
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

FTS-128 Series

Part	Overall Contact Length	Overall Contact Length	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Number of Rows	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Shape	Insulation Height	Insulation Height	Termination	Contact Finish - Post	Connector Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Shrouding	Contact Material	Insulation Color	Contact Length - Post	Contact Length - Post	Style	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Features	Contact Length - Mating	Contact Length - Mating
Samtec Inc. FTS-128-02-F-S	0.199 in	5.05 mm	Through Hole	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Male Pin	UL94 V-0	0.05 in	1.27 mm	Gold	1	All	3 µin	0.076 µm	28	Square	0.034 in	0.86 mm	Solder	Tin	Cuttable Header	1.9 mm	0.075 in	Unshrouded	Phosphor Bronze	Black	0.09 "	2.29 mm	Board to Board Cable	Push-Pull
Samtec Inc. FTS-128-02-L-D	0.199 in	5.05 mm	Through Hole	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Male Pin	UL94 V-0	0.05 in	1.27 mm	Gold	2	All	10 çin	0.25 çm	56	Square	0.034 in	0.86 mm	Solder	Tin	Cuttable Header	1.9 mm	0.075 in	Unshrouded	Phosphor Bronze	Black	0.09 "	2.29 mm	Board to Board Cable	Push-Pull	0.05 in	1.27 mm
Samtec Inc. FTS-128-01-L-DV-A			Surface Mount	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Male Pin	UL94 V-0	0.05 in	1.27 mm	Gold	2	All	10 çin	0.25 çm	56	Square	0.034 in	0.86 mm	Solder	Tin	Cuttable Header			Unshrouded	Phosphor Bronze	Black			Board to Board Cable	Push-Pull	0.05 in	1.27 mm	Board Guide	3.05 mm	0.12 in
Samtec Inc. FTS-128-02-L-DV-S			Surface Mount	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Male Pin	UL94 V-0	0.05 in	1.27 mm	Gold	2	All	10 çin	0.25 çm	56	Square	0.034 in	0.86 mm	Solder	Tin	Cuttable Header	1.9 mm	0.075 in	Unshrouded	Phosphor Bronze	Black			Board to Board Cable	Push-Pull	0.05 in	1.27 mm	End Shrouds
Samtec Inc. FTS-128-01-L-DV-P			Surface Mount	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Male Pin	UL94 V-0	0.05 in	1.27 mm	Gold	2	All	10 çin	0.25 çm	56	Square	0.034 in	0.86 mm	Solder	Tin	Cuttable Header			Unshrouded	Phosphor Bronze	Black			Board to Board Cable	Push-Pull	0.05 in	1.27 mm	Pick and Place	3.05 mm	0.12 in
Samtec Inc. FTS-128-03-L-DV			Surface Mount	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Male Pin	UL94 V-0	0.05 in	1.27 mm	Gold	2	All	10 çin	0.25 çm	56	Square	0.034 in	0.86 mm	Solder	Tin	Cuttable Header			Unshrouded	Phosphor Bronze	Black			Board to Board Cable	Push-Pull	0.05 in	1.27 mm		1.65 mm	0.065 in
Samtec Inc. FTS-128-03-F-D			Through Hole	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Male Pin	UL94 V-0	0.05 in	1.27 mm	Gold	2	All	3 µin	0.076 µm	56	Square	0.034 in	0.86 mm	Solder	Tin	Cuttable Header			Unshrouded	Phosphor Bronze	Black	0.09 "	2.29 mm	Board to Board Cable	Push-Pull	0.05 in	1.27 mm		1.65 mm	0.065 in
Samtec Inc. FTS-128-03-L-DV-SA			Surface Mount	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Male Pin	UL94 V-0	0.05 in	1.27 mm	Gold	2	All	10 çin	0.25 çm	56	Square	0.034 in	0.86 mm	Solder	Tin	Cuttable Header			Unshrouded	Phosphor Bronze	Black			Board to Board Cable	Push-Pull	0.05 in	1.27 mm	Board Guide End Shrouds	1.65 mm	0.065 in
Samtec Inc. FTS-128-02-L-DV-A			Surface Mount	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Male Pin	UL94 V-0	0.05 in	1.27 mm	Gold	2	All	10 çin	0.25 çm	56	Square	0.034 in	0.86 mm	Solder	Tin	Cuttable Header	1.9 mm	0.075 in	Unshrouded	Phosphor Bronze	Black			Board to Board Cable	Push-Pull	0.05 in	1.27 mm	Board Guide
Samtec Inc. FTS-128-02-L-DV-TR			Surface Mount	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Male Pin	UL94 V-0	0.05 in	1.27 mm	Gold	2	All	10 çin	0.25 çm	56	Square	0.034 in	0.86 mm	Solder	Tin	Cuttable Header	1.9 mm	0.075 in	Unshrouded	Phosphor Bronze	Black			Board to Board Cable	Push-Pull	0.05 in	1.27 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FTS-128 Series

Connector Header Surface Mount 56 position 0.050" (1.27mm)
