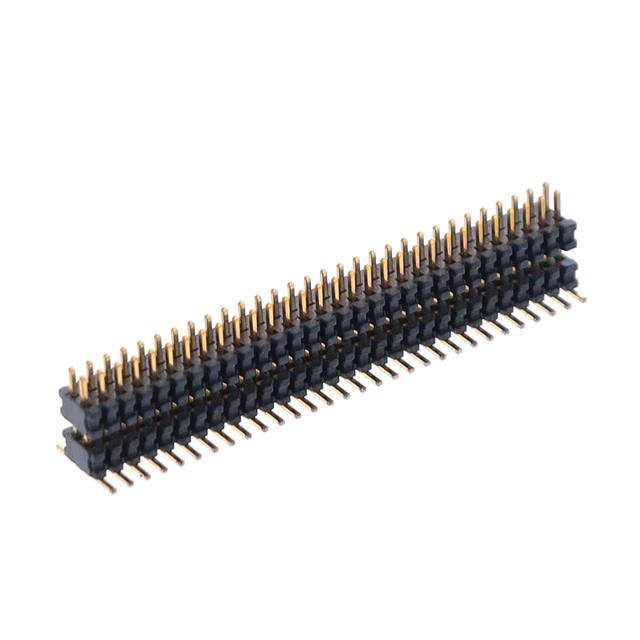

MW-30-03-G-D-165-065

Active

Samtec Inc.

CONN HDR 60POS 0.039 STACK SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MW-30-03-G-D-165-065

Active

Samtec Inc.

CONN HDR 60POS 0.039 STACK SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MW-30-03-G-D-165-065

Color	Black, Natural
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	5.842 mm
Length - Overall Pin [x]	0.23 in
Length - Post (Mating) [x]	1.651 mm
Length - Post (Mating) [x]	0.065 in
Length - Stack Height [custom]	0.165 in
Length - Stack Height [custom]	4.191 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.039 in
Pitch [x]	1 mm
Row Spacing	0.039 in
Row Spacing	1 mm
Termination	Solder

MW-10-03 Series

Board to Board & Mezzanine Connectors 1.00 mm Flex Stack, Flexible Micro Board Stacker, Surface Mount

...

Part	Contact Finish - Post (Mating)	Row Spacing	Row Spacing	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Mounting Type	Pitch [x]	Pitch [x]	Length - Stack Height [z]	Length - Stack Height [z]	Termination	Number of Positions	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Color	Length - Overall Pin [x]	Length - Overall Pin [x]	Number of Rows	Length - Stack Height [x]	Length - Stack Height [x]	Length - Stack Height [custom]	Length - Stack Height [custom]
Samtec Inc. MW-20-03-G-D-095-065-P-TR	Gold	0.039 in	1 mm	1.651 mm	0.065 in	Surface Mount	0.039 in	1 mm	0.095 in	2.413 mm	Solder	40	0.25 Ám	10 Áin	Black	0.16 in	4.064 mm	2
Samtec Inc. MW-10-03-G-D-125-075	Gold	0.039 in	1 mm	1.905 mm	0.075 in	Surface Mount	0.039 in	1 mm	0.125 in	3.175 mm	Solder	20	0.25 Ám	10 Áin	Black	0.2 in	5.08 mm	2
Samtec Inc. MW-06-03-G-D-232-065-TR	Gold	0.039 in	1 mm	1.651 mm	0.065 in	Surface Mount	0.039 in	1 mm			Solder	12	0.25 Ám	10 Áin	Black Natural	0.297 in	7.544 mm	2	5.893 mm	0.232 in
Samtec Inc. MW-12-03-H-D-095-140-P	Gold	0.039 in	1 mm	3.556 mm	0.14 in	Surface Mount	0.039 in	1 mm	0.095 in	2.413 mm	Solder	24	0.76 µm	30 µin	Black	0.235 in	5.969 mm	2
Samtec Inc. MW-05-03-G-D-205-065-A	Gold	0.039 in	1 mm	1.651 mm	0.065 in	Surface Mount	0.039 in	1 mm			Solder	10	0.25 Ám	10 Áin	Black Natural	0.27 in	6.858 mm	2	5.207 mm	0.205 in
Samtec Inc. MW-13-03-G-D-095-095	Gold	0.039 in	1 mm	2.413 mm	0.095 in	Surface Mount	0.039 in	1 mm	0.095 in	2.413 mm	Solder	26	0.25 Ám	10 Áin	Black	0.19 in	4.826 mm	2
Samtec Inc. MW-16-03-G-D-184-126	Gold	0.039 in	1 mm	3.2 mm	0.126 in	Surface Mount	0.039 in	1 mm			Solder		0.25 Ám	10 Áin	Black Natural	0.31 in	7.874 mm	2	4.674 mm	0.184 in
Samtec Inc. MW-30-03-G-D-190-065-A-P-TR	Gold	0.039 in	1 mm	1.651 mm	0.065 in	Surface Mount	0.039 in	1 mm	0.19 in	4.826 mm	Solder	60	0.25 Ám	10 Áin	Black Natural	0.255 in	6.477 mm	2
Samtec Inc. MW-07-03-G-D-203-065
Samtec Inc. MW-30-03-G-D-165-065	Gold	0.039 in	1 mm	1.651 mm	0.065 in	Surface Mount	0.039 in	1 mm			Solder	60	0.25 Ám	10 Áin	Black Natural	0.23 in	5.842 mm	2			0.165 in	4.191 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 12.17
		10	$ 11.25
		25	$ 10.63
		50	$ 10.25
		100	$ 9.55

Description

General part information

MW-10-03 Series

Board to Board & Mezzanine Connectors 1.00 mm Flex Stack, Flexible Micro Board Stacker, Surface Mount

Documents

Technical documentation and resources
