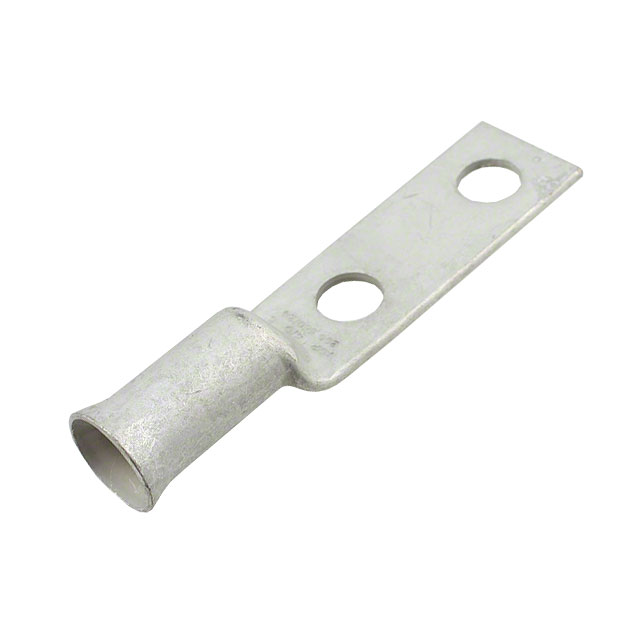

53683-2

53683-2

Active

TE Connectivity AMP Connectors

CONN TERM RECT TONG 4/0 AWG #1/2

53683-2

53683-2

Active

TE Connectivity AMP Connectors

CONN TERM RECT TONG 4/0 AWG #1/2

Description Specifications Series Pricing CAD Documents

Description

General part information

53683 Series

Terminal Connector Rectangular Rectangular Tongue 4/0 AWG 1/2 Stud

Technical Specifications

Parameters and characteristics for this part

Specification	53683-2

Contact Finish	Tin
Contact Material	Copper
Diameter - Barrel ID	0.648 in
Diameter - Barrel OD	0.98 in
Diameter - Ring ID	0.562 in
Insulation	Non-Insulated
Length - Overall	4.94 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	0.5 Stud
Tab Thickness	0.13 in
Terminal Style	Two Stud Holes
Terminal Type	Rectangular Tongue
Termination	Barrel, Crimb
Width - Outer Edges	1.19 in
Wire Gauge	4/0 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — free Log in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

53683-2 | Datasheet

53683 Series

Part	Diameter - Ring ID	Diameter - Barrel ID	Contact Material	Contact Finish	Diameter - Barrel OD	Termination	Tab Thickness	Stud/Tab Size	Terminal Type	Width - Outer Edges	Terminal Style	Insulation	Length - Overall	Wire Gauge	Mounting Type
TE Connectivity AMP Connectors 53683-2	0.562 in	0.648 in	Copper	Tin	0.98 in	Barrel Crimb	0.13 in	0.5 Stud	Rectangular Tongue	1.19 in	Two Stud Holes	Non-Insulated	4.94 in	4/0 AWG	Free Hanging (In-Line)
