C4065A.38.10

Active

Prysmian Group

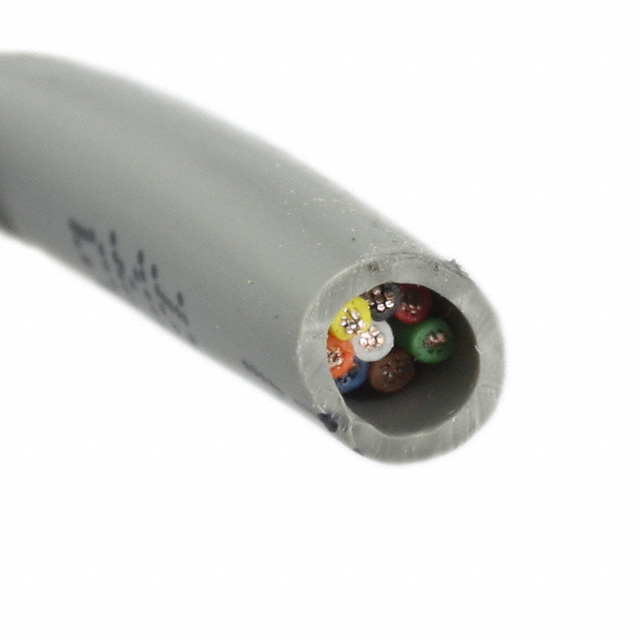

CABLE 8COND 22AWG GRAY

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 8COND 22AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	C4065A.38.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	5.94 mm
Jacket (Insulation) Diameter [diameter]	0.234 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

Part	Jacket (Insulation) Material	Number of Conductors	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Conductor Material	Length [x]	Length [x]	Usage	Conductor Insulation	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length
Prysmian Group C4065A.38.10	Poly-Vinyl Chloride (PVC)	8	300 V	7	30 AWG	22 AWG	-20 C	80 C	Gray	Copper Tinned	500 '	152.4 m	Communication Control	Poly-Vinyl Chloride (PVC)	Multi-Conductor	5.94 mm	0.234 "
Prysmian Group C4065A.41.10	Poly-Vinyl Chloride (PVC)	8	300 V	7	30 AWG	22 AWG	-20 C	80 C	Gray	Copper Tinned			Communication Control	Poly-Vinyl Chloride (PVC)	Multi-Conductor	5.94 mm	0.234 "	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Conductor Multi-Conductor Cable Gray 22 AWG 500.0' (152.4m)
