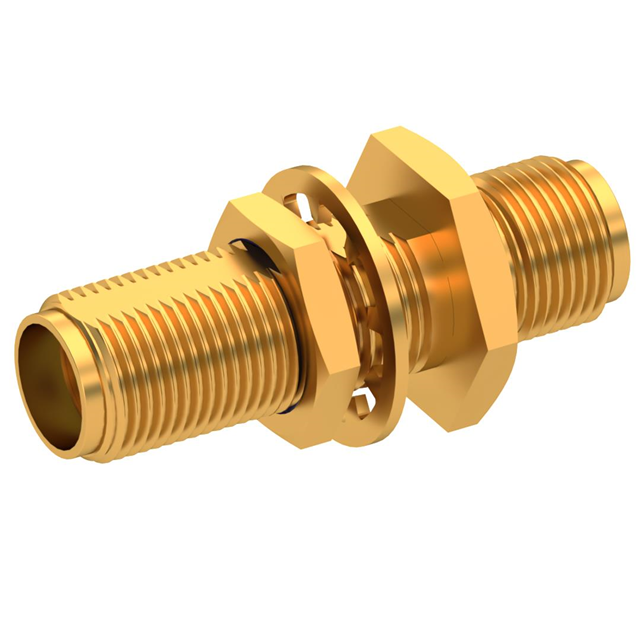

Specification	5909-1103-000

Adapter Series	SMA to SMA
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female
Conversion Type	Same Series
Convert From (Adapter End)	SMA Jack, Female Socket
Convert To (Adapter End) Gender	Female Socket
Convert To (Adapter End) Type	SMA Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	18 GHz
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Feature	Bulkhead
Mounting Type	Panel Mount
Style	Straight

5909-1103 Series

Part	Mounting Type	Center Gender	Convert From (Adapter End)	Center Contact Plating	Convert To (Adapter End) Gender	Convert To (Adapter End) Type	Impedance	Fastening Type	Mounting Feature	Conversion Type	Style	Frequency - Max	Adapter Series	Adapter Type	Dielectric Material	Body Material	Body Finish	Center Contact Material	Mating Cycles
Radiall USA, Inc. 5909-1103-000	Panel Mount	Female	Female Socket SMA Jack	Gold	Female Socket	SMA Jack	50 Ohm	Threaded	Bulkhead	Same Series	Straight	18 GHz	SMA to SMA	Jack to Jack	Polytetrafluoroethylene (PTFE)	Stainless Steel	Gold	Beryllium Copper	500 cycles
