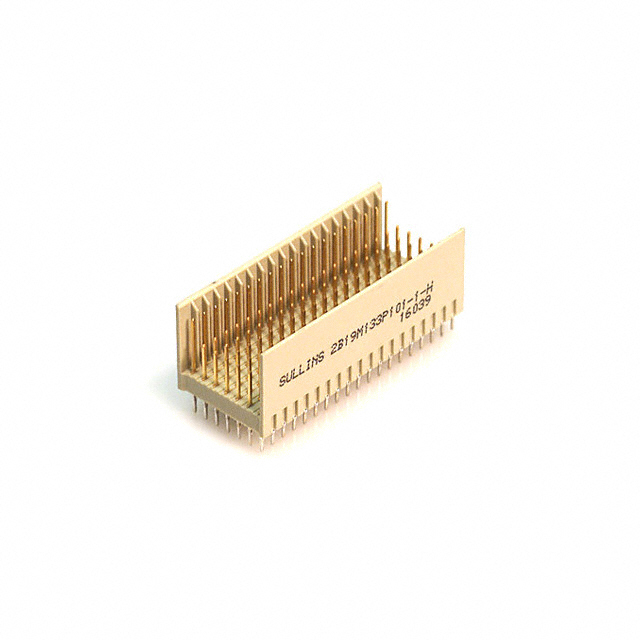

2B19M133P1001-1-H

Obsolete

Sullins Connector Solutions

CONN HEADER 133POS 2MM PRESS-FIT

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN HEADER 133POS 2MM PRESS-FIT

Technical Specifications

Parameters and characteristics for this part

CONN HEADER 133POS 2MM PRESS-FIT

Part	Current Rating (Amps)	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Finish	Connector Style	Termination	Number of Positions [custom]	Number of Positions [custom]	Connector Usage	Pitch [x]	Pitch [x]	Number of Rows
Sullins Connector Solutions 2B19M133P1001-1-H	1 A	Through Hole	0.76 Ám	30 Áin	All	125 °C	-65 ░C	Header, Male Pins	Gold	B 19	Press-Fit	38	95	CompactPCI	0.079 in	2 mm	2, 5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

133 (95 + 38 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole
