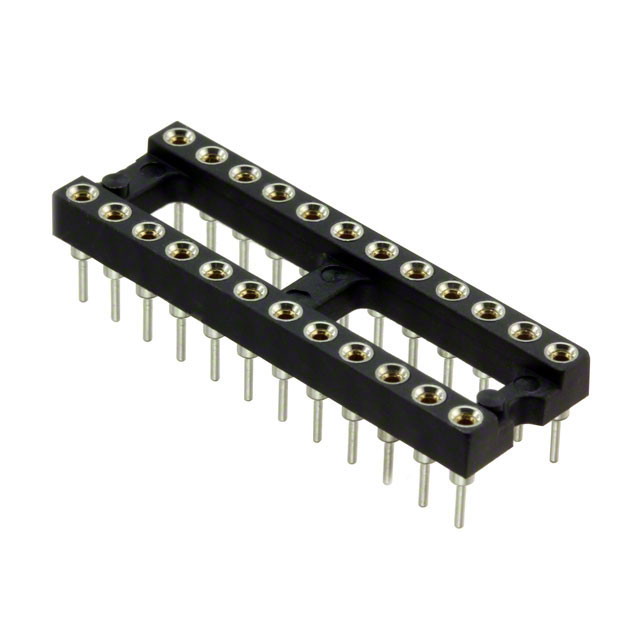

D2924-42 - D2924-42

D2924-42

Active
Harwin Inc.

DIP, 24POS, 2.54MM, GOLD ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsManufacturer Catalogue ENTechnical Data Sheet EN+2
D2924-42 - D2924-42

D2924-42

Active
Harwin Inc.

DIP, 24POS, 2.54MM, GOLD ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsManufacturer Catalogue ENTechnical Data Sheet EN+2

Technical Specifications

Parameters and characteristics for this part

SpecificationD2924-42
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - MatingFlash
Contact Finish Thickness - Post196.9 µin
Contact Finish Thickness - Post5 µm
Contact Material - MatingBeryllium Copper
Contact Material - Post [custom]Brass
Contact Resistance10 mOhm
Current Rating (Amps)1 A
FeaturesOpen Frame
Housing MaterialPlastic
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions or Pins (Grid)24
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating0.1 in
Pitch - Mating2.54 mm
Pitch - Post2.54 mm
Pitch - Post0.1 in
TerminationSolder
Termination Post Length3.2 mm
Termination Post Length0.126 in
Type0.3 "
Type7.62 mm
TypeDIP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 3.68
17$ 3.34
34$ 3.16
51$ 3.09
102$ 2.94
255$ 2.58
510$ 2.50
1003$ 2.13
2516$ 1.99
NewarkEach 1$ 4.44
10$ 3.82
25$ 3.19
50$ 2.93
100$ 2.85
250$ 2.77
500$ 2.44
1000$ 2.39

Description

General part information

D2924 Series

24 (2 x 12) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
