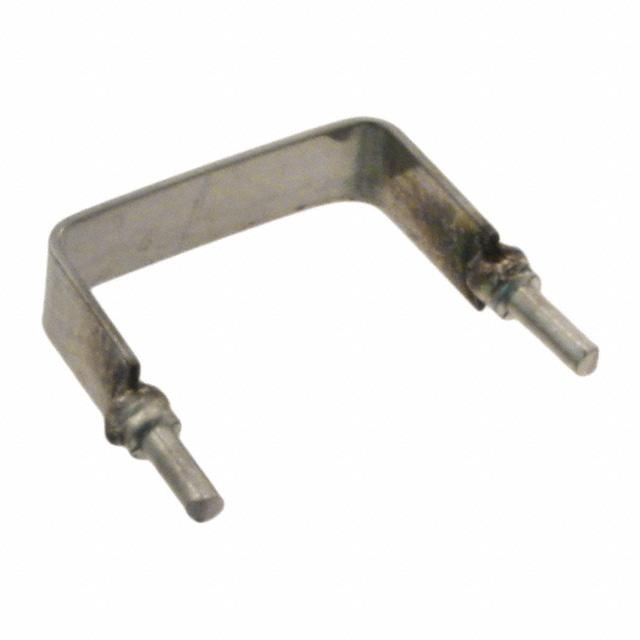

PWR4412-2SBR0200J

Obsolete

Bourns Inc.

1W 20MΩ CURRENT SENSING RESISTORS ±20PPM/℃ ±5% CURRENT SENSE RESISTORS / SHUNT RESISTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PWR4412-2SBR0200J

Obsolete

Bourns Inc.

1W 20MΩ CURRENT SENSING RESISTORS ±20PPM/℃ ±5% CURRENT SENSE RESISTORS / SHUNT RESISTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PWR4412-2SBR0200J

Composition	Metal Element
Features	Pulse Withstanding, Current Sense, Moisture Resistant
Height - Seated (Max) [Max]	0.3 in
Height - Seated (Max) [Max]	7.62 mm
Number of Terminations	2
Operating Temperature [Max]	270 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Power (Watts)	1 W
Resistance	0.02 Ohms
Size / Dimension [x]	0.45 in
Size / Dimension [x]	0.45 in
Size / Dimension [y]	0.189 in
Size / Dimension [y]	4.8 mm
Temperature Coefficient	20 ppm/°C
Tolerance	5 %

PWR4412 Series

Part	Number of Terminations	Tolerance	Composition	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Package / Case	Temperature Coefficient	Features	Resistance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Bourns Inc. PWR4412-2SCR0490F	2	1 %	Metal Element	4.8 mm	0.6 in	15.24 mm	0.189 in	3 W	Radial	20 ppm/°C	Current Sense Moisture Resistant Pulse Withstanding	49 mOhms	25.4 mm	25.4 mm	270 °C	-55 °C
Bourns Inc. PWR4412-2SCR0200F	2	1 %	Metal Element	4.8 mm	0.6 in	15.24 mm	0.189 in	3 W	Radial	20 ppm/°C	Current Sense Moisture Resistant Pulse Withstanding	0.02 Ohms	25.4 mm	25.4 mm	270 °C	-55 °C
Bourns Inc. PWR4412-2SDR0250J	2	5 %	Metal Element	4.8 mm	0.8 "	20.32 mm	0.189 in	5 W	Radial	20 ppm/°C	Current Sense Moisture Resistant Pulse Withstanding	25 mOhms	25.4 mm	25.4 mm	270 °C	-55 °C
Bourns Inc. PWR4412-2SBR0250F	2	1 %	Metal Element	4.8 mm	0.45 in	0.45 in	0.189 in	1 W	Radial	20 ppm/°C	Current Sense Moisture Resistant Pulse Withstanding	25 mOhms			270 °C	-55 °C	0.3 in	7.62 mm
Bourns Inc. PWR4412-2SDR0500F	2	1 %	Metal Element	4.8 mm	0.8 "	20.32 mm	0.189 in	5 W	Radial	20 ppm/°C	Current Sense Moisture Resistant Pulse Withstanding	0.05 Ohms	25.4 mm	25.4 mm	270 °C	-55 °C
Bourns Inc. PWR4412-2SCR1000J	2	5 %	Metal Element	4.8 mm	0.6 in	15.24 mm	0.189 in	3 W	Radial	20 ppm/°C	Current Sense Moisture Resistant Pulse Withstanding	0.1 Ohms	25.4 mm	25.4 mm	270 °C	-55 °C
Bourns Inc. PWR4412-2SBR0200J	2	5 %	Metal Element	4.8 mm	0.45 in	0.45 in	0.189 in	1 W	Radial	20 ppm/°C	Current Sense Moisture Resistant Pulse Withstanding	0.02 Ohms			270 °C	-55 °C	0.3 in	7.62 mm
Bourns Inc. PWR4412-2SCR0250F	2	1 %	Metal Element	4.8 mm	0.6 in	15.24 mm	0.189 in	3 W	Radial	20 ppm/°C	Current Sense Moisture Resistant Pulse Withstanding	25 mOhms	25.4 mm	25.4 mm	270 °C	-55 °C
Bourns Inc. PWR4412-2SBR0300J	2	5 %	Metal Element	4.8 mm	0.45 in	0.45 in	0.189 in	1 W	Radial	20 ppm/°C	Current Sense Moisture Resistant Pulse Withstanding	0.03 Ohms			270 °C	-55 °C	0.3 in	7.62 mm
Bourns Inc. PWR4412-2SBR1000F	2	1 %	Metal Element	4.8 mm	0.45 in	0.45 in	0.189 in	1 W	Radial	20 ppm/°C	Current Sense Moisture Resistant Pulse Withstanding	0.1 Ohms			270 °C	-55 °C	0.3 in	7.62 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

LCSC	Piece	1	$ 1.78
		250	$ 0.71
		500	$ 0.69
		1000	$ 0.67

Description

General part information

PWR4412 Series

20 mOhms ±5% 1W Through Hole Resistor Radial Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
