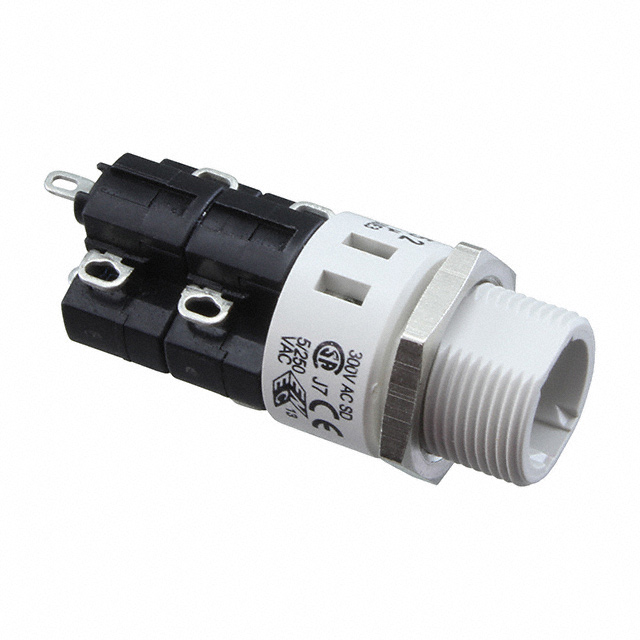

11-132.825
ActiveEAO
SWITCH PB DPDT 5A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
11-132.825
ActiveEAO
SWITCH PB DPDT 5A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 11-132.825 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button (Not Included) |
| Circuit | DPDT (DB/DM) |
| Current Rating (Amps) | 2 A, 5 A |
| Mounting Type | Panel Mount, Rear |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 88.70 | |
11-132 Series
SWITCH PB DPDT 5A 250V
| Part | Termination Style | Actuator Marking | Panel Cutout Dimensions [diameter] | Type | Voltage Rating - DC | Mounting Type | Circuit | Switch Function | Actuator Type | Current Rating (Amps) | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 11-132.825 | Solder Lug | No Marking | 16 mm | Standard | 24 V | Panel Mount, Rear | DPDT (DB/DM) | On-Mom | Round, Button (Not Included) | 2 A, 5 A | 250 V |
Description
General part information
11-132 Series
Pushbutton Switch DPDT (DB/DM) Standard Panel Mount, Rear
