902-0066-000

Active

ROBOTIS

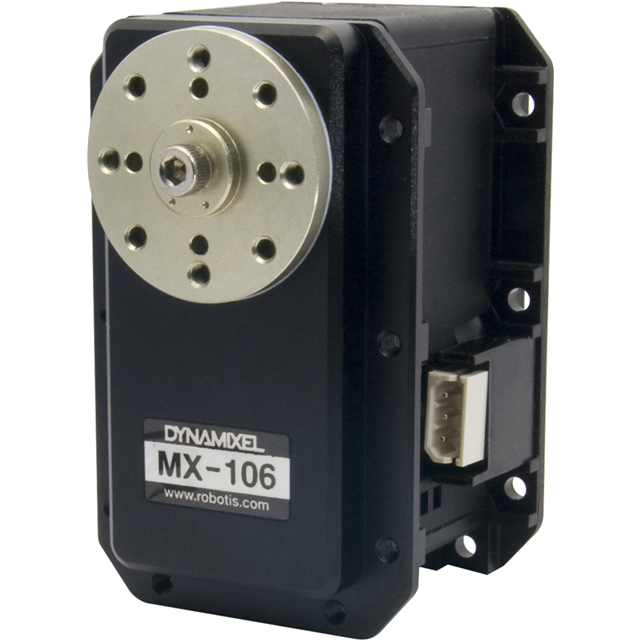

MX-106R DYNAMIXEL SERVO

Search across all available documentation for this part.

Active

ROBOTIS

MX-106R DYNAMIXEL SERVO

Technical Specifications

Parameters and characteristics for this part

Specification	902-0066-000

Encoder Type	Absolute
Features	Integrated Controller
Function	Servomotor
Gear Reduction Ratio	225
Motor Type	Brushed
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-5 °C
RPM	45 RPM
Termination Style	Connector
Torque - Max Momentary (oz-in / mNm)	8400 mNm
Torque - Max Momentary (oz-in / mNm)	1189.8 oz-in
Type	DC Motor
Voltage - Rated	12 VDC

MX-106R DYNAMIXEL SERVO

Part	Features	Voltage - Rated	Encoder Type	Type	Gear Reduction Ratio	RPM	Function	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Motor Type
ROBOTIS 902-0066-000	Integrated Controller	12 VDC	Absolute	DC Motor	225	45 RPM	Servomotor	8400 mNm	1189.8 oz-in	80 C	-5 °C	Connector	Brushed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Brushed DC Motor Servomotor 45 RPM Absolute 12VDC

Technical documentation and resources

No documents available
