Technical Specifications
Parameters and characteristics for this part

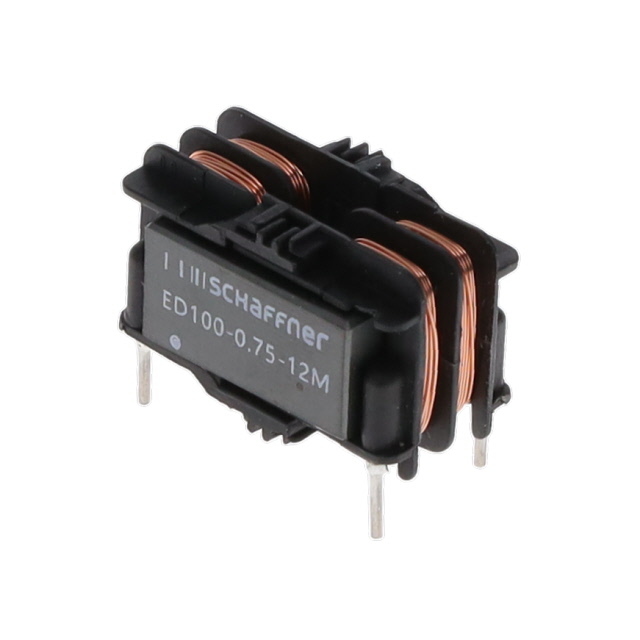

| Specification | ED100-0.75-12M |
|---|---|
| Current Rating (Max) [Max] | 750 mA |
| DC Resistance (DCR) (Max) | 1.2 Ohm |
| Filter Type | Power Line |
| Height (Max) | 15.5 mm |
| Height (Max) [Max] | 0.61 in |
| Inductance @ Frequency | 12 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 24 mm |
| Size / Dimension [x] | 0.945 in |
| Size / Dimension [y] | 0.563 " |
| Size / Dimension [y] | 14.3 mm |
| Voltage Rating - AC | 300 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3.26 | |
| 10 | $ 2.53 | |||
| 25 | $ 2.29 | |||
| 50 | $ 2.12 | |||
| 100 | $ 1.96 | |||
| 250 | $ 1.77 | |||
Description
General part information
Schaffner ED100 Series
300 VDC, .75 A, PCB Terminal, PD2 Pollution Degree, IP00, Horizontal, UL 94V-0, Board Mount, Schaffner ED100, EMC Chokes
