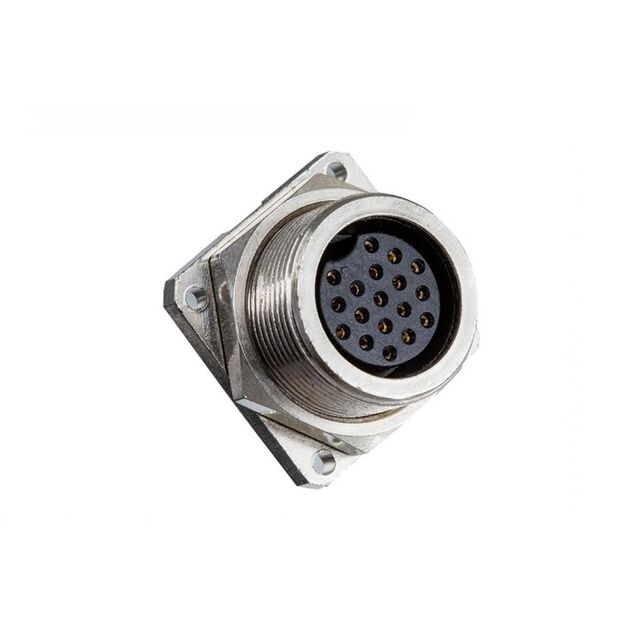

DSD-18PMFP-SS8001 - DSD-18PMFP-SS8001

DSD-18PMFP-SS8001

Active
Amphenol LTW

CERES, LARGE SIZE, 5A, 18 PINS, RECEPTACLE, SQUARE ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DSD-18PMFP-SS8001 - DSD-18PMFP-SS8001

DSD-18PMFP-SS8001

Active
Amphenol LTW

CERES, LARGE SIZE, 5A, 18 PINS, RECEPTACLE, SQUARE ROHS COMPLIANT: YES

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationDSD-18PMFP-SS8001
ColorSilver
Connector TypeReceptacle, Female Sockets
Contact Finish - MatingGold
Contact MaterialCopper Alloy
Current Rating (Amps)5 A
Ingress ProtectionIP68 - Dust Tight, Waterproof
Insert MaterialPolyamide (PA), Nylon, Glass Filled
Mounting FeatureFlange
Mounting TypeThrough Hole, Panel Mount
Number of Positions18
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
OrientationKeyed
Primary MaterialMetal
Shell FinishNickel
Shell MaterialBrass
Shell Size - InsertD
ShieldingShielded
TerminationSolder
Voltage Rating250 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 10$ 44.57
NewarkEach 10$ 42.84
25$ 39.87
50$ 36.64
100$ 36.10
250$ 35.56

Description

General part information

DSD-18PMFP Series

18 Position Circular Connector Receptacle, Female Sockets Solder

Documents

Technical documentation and resources

No documents available
