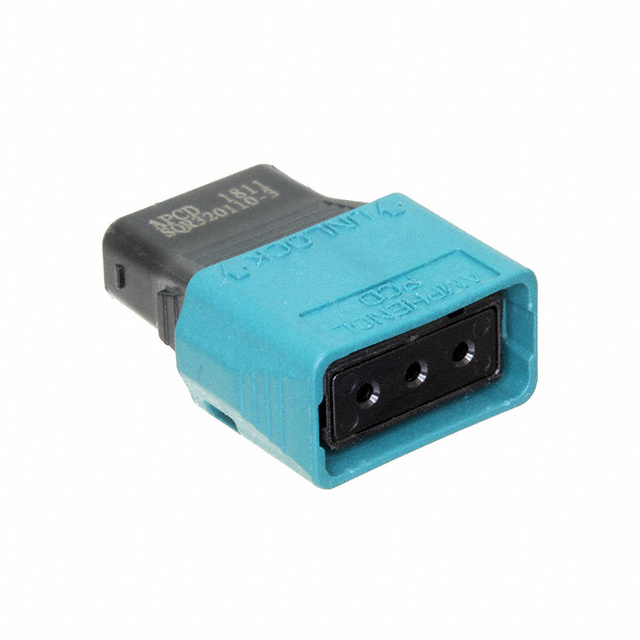

SQR320200
ActiveAMPHENOL PCD
CONN RCPT HSG 3POS 20AWG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SQR320200
ActiveAMPHENOL PCD
CONN RCPT HSG 3POS 20AWG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SQR320200 | SQR32 Series |
|---|---|---|
| Color | - | Black |
| Connector Type | Receptacle | Plug, Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male Pin | Female Socket, Male Pin |
| Fastening Type | Latch Lock | Latch Lock |
| Features | IP67 | IP67 |
| Insulation Material | Polyetherimide (PEI) | Polyetherimide (PEI) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | - | 4 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Wire Gauge | - | 20 - 22 AWG |
| Wire Type | - | Discrete |
SQR32 Series
CONN PLUG 3POS 20AWG
| Part | Number of Rows | Wire Gauge | Contact Type | Fastening Type | Connector Type | Wire Type | Mounting Type | Color | Features | Number of Positions | Note | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AMPHENOL PCD SQR320151 | 1 | 20 AWG | Female Socket | Latch Lock | Plug | Discrete | Free Hanging (In-Line) | Black | IP67 | ||||||
AMPHENOL PCD SQR320211-3 | 1 | 20 AWG | Male Pin | Latch Lock | Receptacle | Discrete | Free Hanging (In-Line) | Black | IP67 | ||||||
AMPHENOL PCD SQR322110-4 | 1 | Female Socket | Latch Lock | Plug | Free Hanging (In-Line) | IP67 | 4 | Contacts Not Included | -65 ░C | 150 °C | Polyetherimide (PEI) | Crimp | |||
AMPHENOL PCD SQR322211-4 | 1 | 22 AWG | Male Pin | Latch Lock | Receptacle | Discrete | Free Hanging (In-Line) | Black | IP67 | 4 | |||||
AMPHENOL PCD SQR322111-4 | 1 | 22 AWG | Female Socket | Latch Lock | Plug | Discrete | Free Hanging (In-Line) | Black | IP67 | 4 | |||||
AMPHENOL PCD SQR320200 | 1 | Male Pin | Latch Lock | Receptacle | Free Hanging (In-Line) | IP67 | Contacts Not Included | -65 ░C | 150 °C | Polyetherimide (PEI) | Crimp | ||||
AMPHENOL PCD SQR320210-3 | 1 | Male Pin | Latch Lock | Receptacle | Free Hanging (In-Line) | IP67 | Contacts Not Included | -65 ░C | 150 °C | Polyetherimide (PEI) | Crimp | ||||
AMPHENOL PCD SQR320110-3 | 1 | Female Socket | Latch Lock | Plug | Free Hanging (In-Line) | IP67 | Contacts Not Included | -65 ░C | 150 °C | Polyetherimide (PEI) | Crimp | ||||
AMPHENOL PCD SQR322210-4 | 1 | Male Pin | Latch Lock | Receptacle | Free Hanging (In-Line) | IP67 | 4 | Contacts Not Included | -65 ░C | 150 °C | Polyetherimide (PEI) | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SQR32 Series
3 Rectangular Connectors - Housings Receptacle
