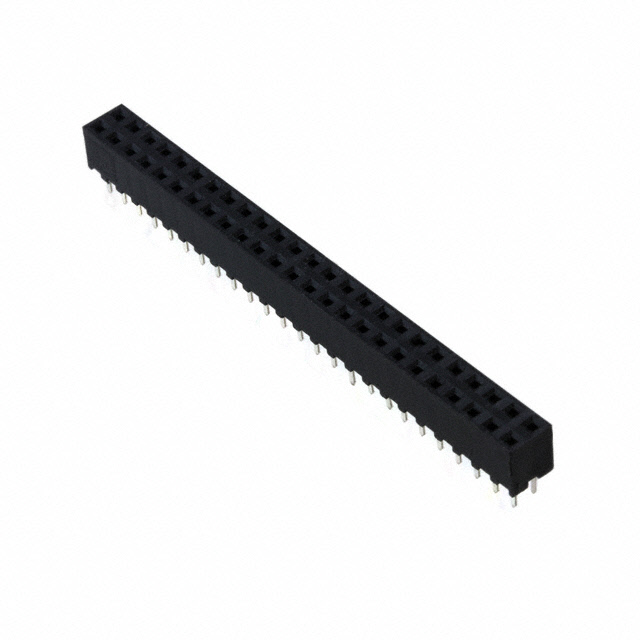

9-1734506-8

Active

TE Connectivity Raychem Cable Protection

CONN RCPT 50POS 0.079 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9-1734506-8

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	2.03 µm
Contact Finish Thickness - Post	80 µin
Contact Length - Post	0.102 in
Contact Length - Post	2.6 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.177 in
Insulation Height	4.5 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder
Voltage Rating	250 VAC

AMPMODU 2 mm Series

Board to Board & Mezzanine Connectors AMPMODU 2.00mm 28p R/A 8u

...

Part	Number of Positions Loaded	Contact Material	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Termination	Fastening Type	Contact Finish - Mating	Number of Rows	Mounting Type	Contact Type	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Contact Shape	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Mating	Shrouding	Features	Contact Length - Post [x]	Contact Length - Post [x]
TE Connectivity Raychem Cable Protection 2MM-HSD-D25-VT-02-F-TRP
TE Connectivity Raychem Cable Protection 2MM-R-S13-HT-02-F-TR
TE Connectivity Raychem Cable Protection 2MM-R-S07-HS-00-F-TR
TE Connectivity Raychem Cable Protection 9-1734506-8	All	Phosphor Bronze	Thermoplastic	0.079 in	2 mm	250 VAC	50	-40 °C	105 ░C	Black	Solder	Push-Pull	Gold	2	Through Hole	Female Socket	Receptacle	30 Áin	0.76 Ám	0.177 in	4.5 mm	0.079 in	2 mm	Tin	2.03 µm	80 µin	UL94 V-0	Square	0.102 in	2.6 mm
TE Connectivity Raychem Cable Protection 2MM-HSP-D07-HT-01-M-TR
TE Connectivity Raychem Cable Protection 2MM-HB-D05-VT-02-H-TB	All	Phosphor Bronze	Thermoplastic	0.079 in	2 mm		10	-40 °C	105 ░C	Black	Solder	Push-Pull	Gold	2	Through Hole	Male Pin	Breakaway Header	30 Áin	0.76 Ám	0.059 "	1.5 mm	0.079 in	2 mm	Tin	4 Ám	157.5 Áin	UL94 V-0	Square			2 A	8.3 mm	0.327 in	4 mm	0.157 in	Unshrouded	Pick and Place	0.11 in	2.8 mm
TE Connectivity Raychem Cable Protection 2MM-HSD-D10-VS-00-H-TBP
TE Connectivity Raychem Cable Protection 2MM-HSD-S04-HT-02-M-TBP
TE Connectivity Raychem Cable Protection 2MM-HSD-S16-VT-01-T-TBP
TE Connectivity Raychem Cable Protection 2MM-R-D06-HS-00-F-TR
