3-1318120-3

Active

TE Connectivity AMP Connectors

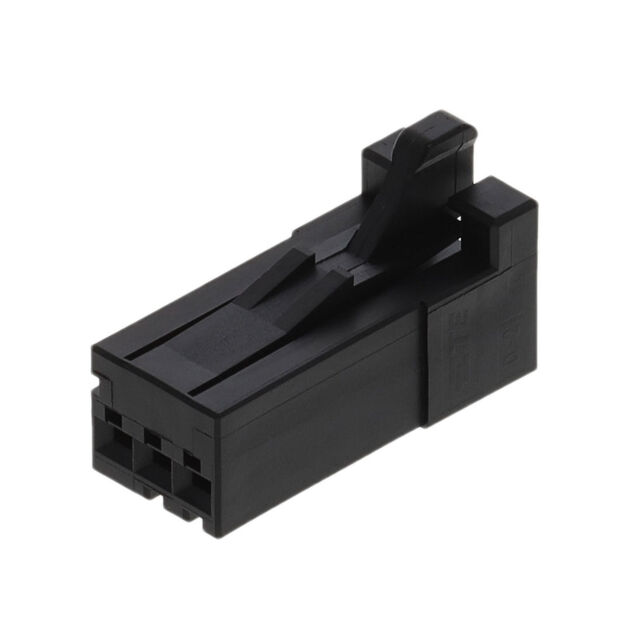

CONN RCPT HSG 3POS 2.50MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 3POS 2.50MM

Technical Specifications

Parameters and characteristics for this part

Specification	3-1318120-3

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Polarizing Key
Insulation Material	Thermoplastic, Glass Filled, Polyester
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm

CONN RCPT HSG 3POS 2.50MM

Part	Note	Contact Type	Features	Connector Type	Pitch [x]	Pitch [x]	Insulation Material	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Color	Fastening Type	Contact Termination
TE Connectivity AMP Connectors 3-1318120-3	Contacts Not Included	Female Socket	Polarizing Key	Receptacle	0.098 in	2.5 mm	Glass Filled, Polyester, Thermoplastic	1	105 ░C	-55 °C	Free Hanging (In-Line)	Black	Latch Lock	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Rectangular Connectors - Housings Receptacle Black 0.098" (2.50mm)
