3-1318120-3
ActiveTE Connectivity Raychem Cable Protection

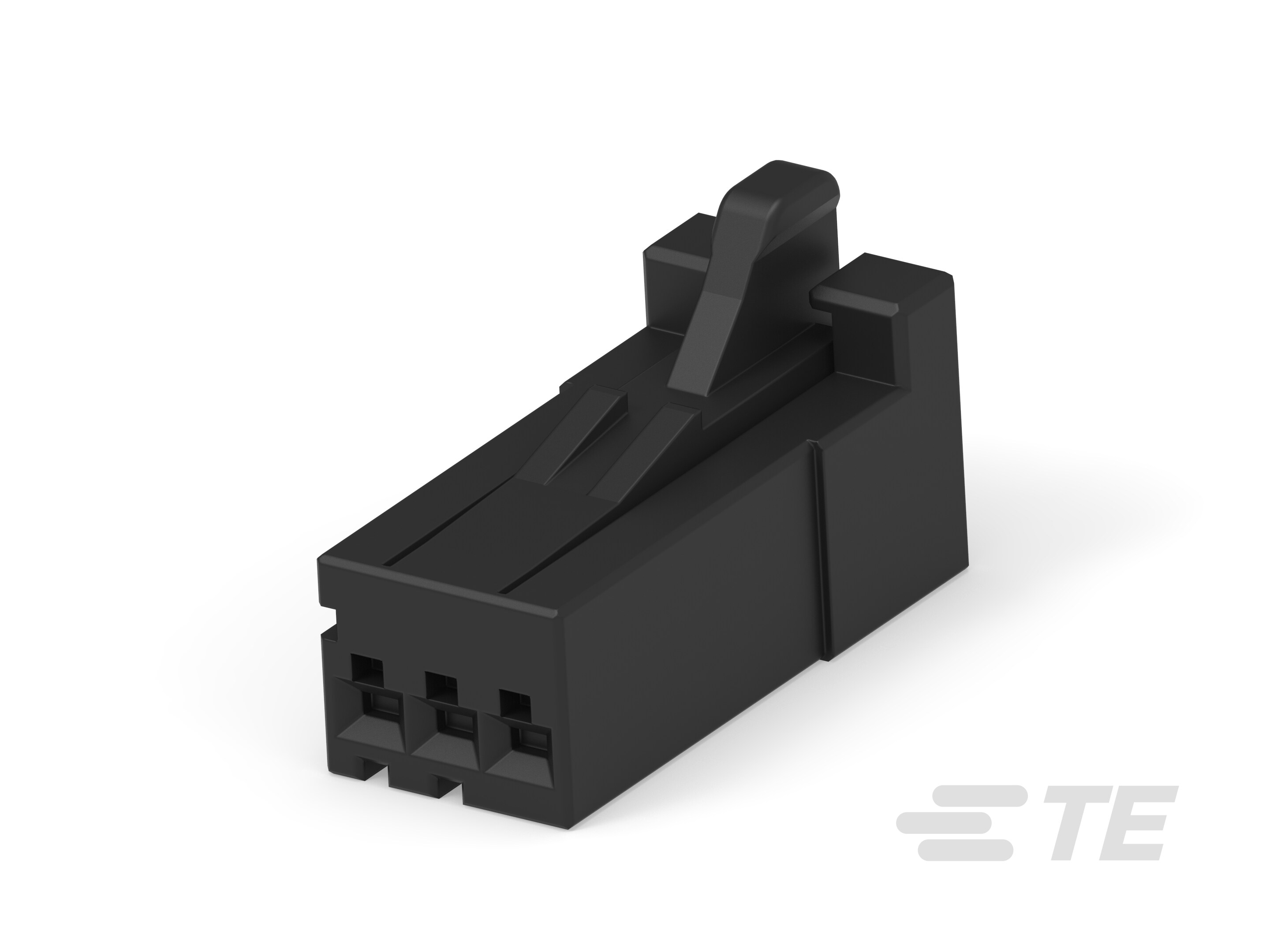

CONN RCPT HSG 3POS 2.50MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-1318120-3
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT HSG 3POS 2.50MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-1318120-3 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Polarizing Key |
| Insulation Material | Thermoplastic, Glass Filled, Polyester |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.87 | |
| 10 | $ 0.72 | |||
| 25 | $ 0.67 | |||
| 50 | $ 0.63 | |||
| 100 | $ 0.59 | |||
| 250 | $ 0.55 | |||
| 500 | $ 0.52 | |||
| 1000 | $ 0.49 | |||
| 2500 | $ 0.46 | |||
Description
General part information
1318120 Series
3 Rectangular Connectors - Housings Receptacle Black 0.098" (2.50mm)
